MILIN / POP-UP DISPLAY SYSTEM

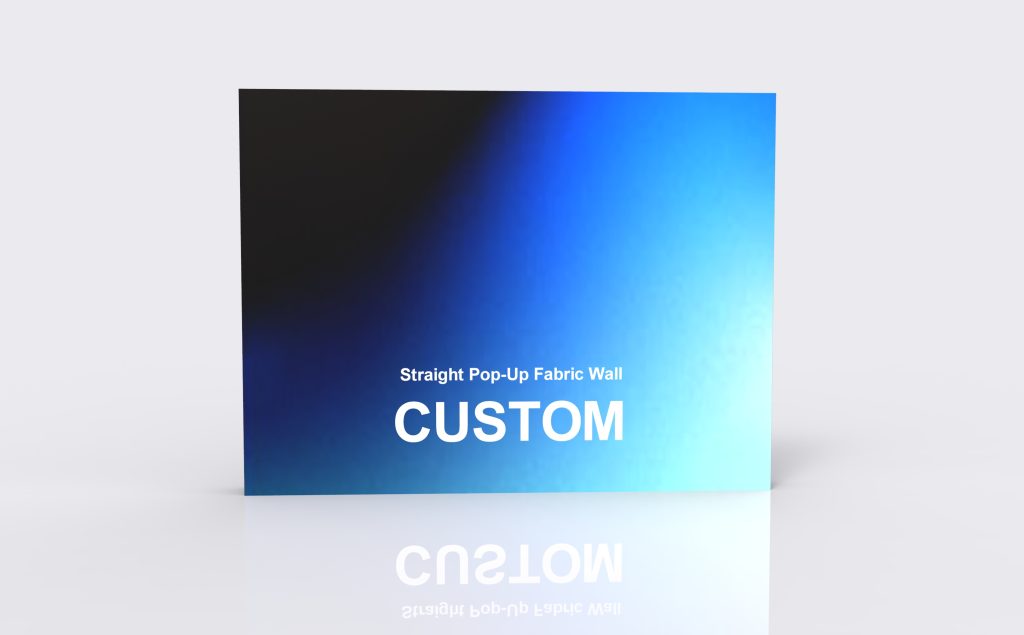

Straight Pop-Up
Fabric Wall
A collapsible frame behind a custom full-color textile graphic. A flat presentation surface for product launches, event photography and travelling promotional teams.
Hook-and-loop graphic attachment · Foldable frame · Made to order
01 / PLAN THE FIT
One straight face. Three catalog widths.
W 227 × H 227 cm.
W 302 × H 227 cm.
W 377 × H 227 cm.
These are catalog dimensions. The current product selector lists 4 × 3 grid. Confirm the assembled width and height for the quoted configuration before approving artwork. A listed 302 cm wall exceeds a strict 300 cm booth width.
Specifications & configuration
| Product format | Tension-fabric backdrop |
|---|---|
| Display type | Collapsible pop-up fabric wall |
| Graphic | Custom full-color textile graphic |
| Attachment | Graphic attaches at the frame connection points with hook-and-loop fasteners |
| Shape | Straight |
| Order type | Made to order |
| 3 × 3 frame | W 227 × H 227 cm. |
| 3 × 4 frame | W 302 × H 227 cm. |
| 3 × 5 frame | W 377 × H 227 cm. |

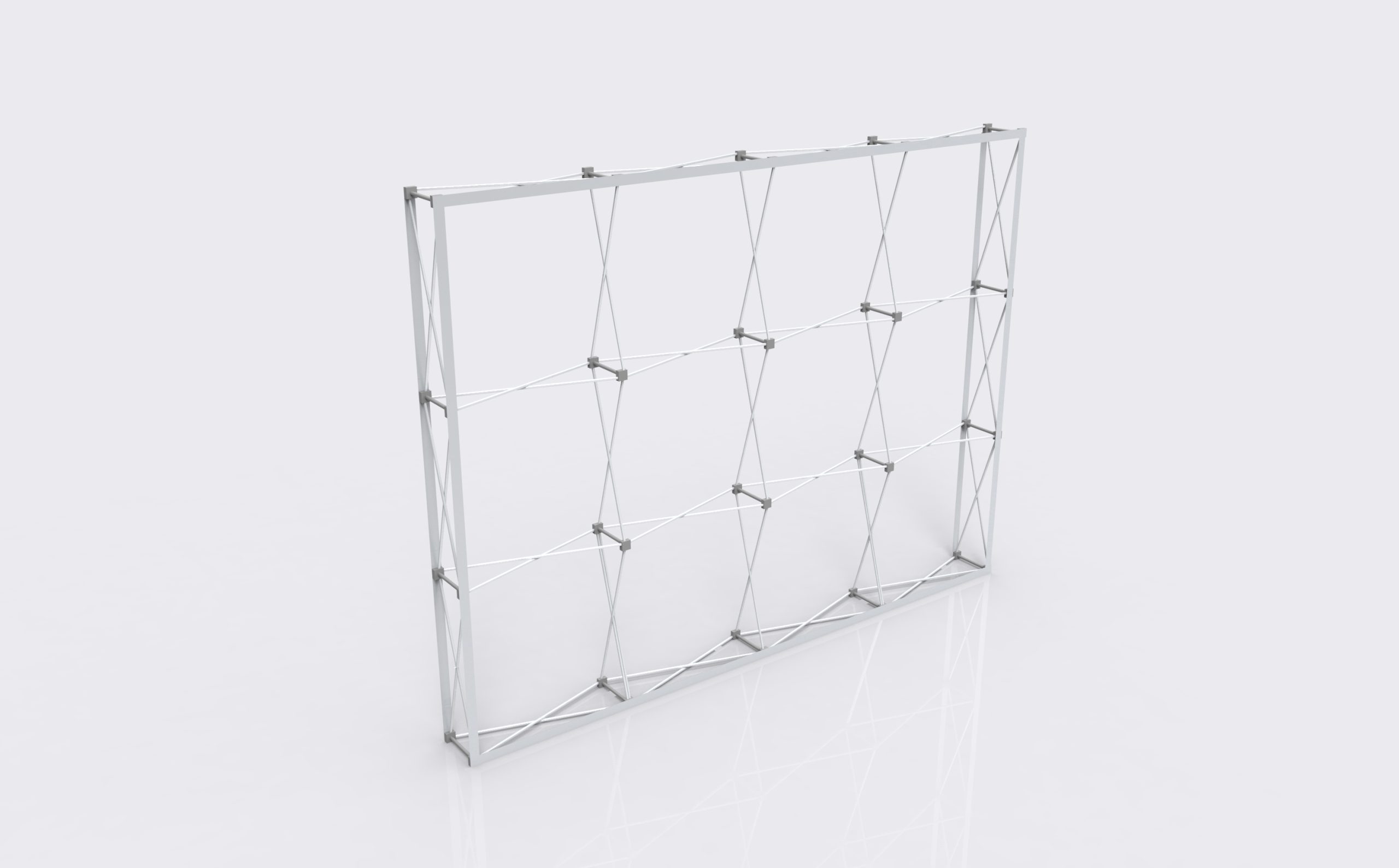

| Frame tubing | 12 × 12 mm square tube; 0.8 mm wall thickness; nylon connectors. |
| Graphic material | 260 g warp-knitted fabric with full-color dye-sublimation printing. |
The frame, the graphic and the fit
Fit the actual booth width
The 3 × 4 version is listed at 302 cm wide. It therefore exceeds an exact 300 cm allocation by 2 cm before allowing any installation clearance. Check the measured booth boundary and required space for the frame supports.
Keep graphic columns aligned
A straight face works well for a brand header with product photographs or short descriptions below. Keep the most important text above the height of your counter, and check that people standing in front do not hide the main message.
Match the fabric to the frame grid
The printed textile fixes at the expanded frame’s connection points. Confirm the selected grid and edge treatment before ordering a replacement. Equal nominal widths do not prove that two suppliers’ graphics will attach in the same way.
Check the transport package
The current selector offers Oxford Fabric Carry Bag and Flight Case. The catalog also mentions a convertible podium case; confirm its availability separately. Request packed dimensions and weight for the complete selected kit.
Artwork & print

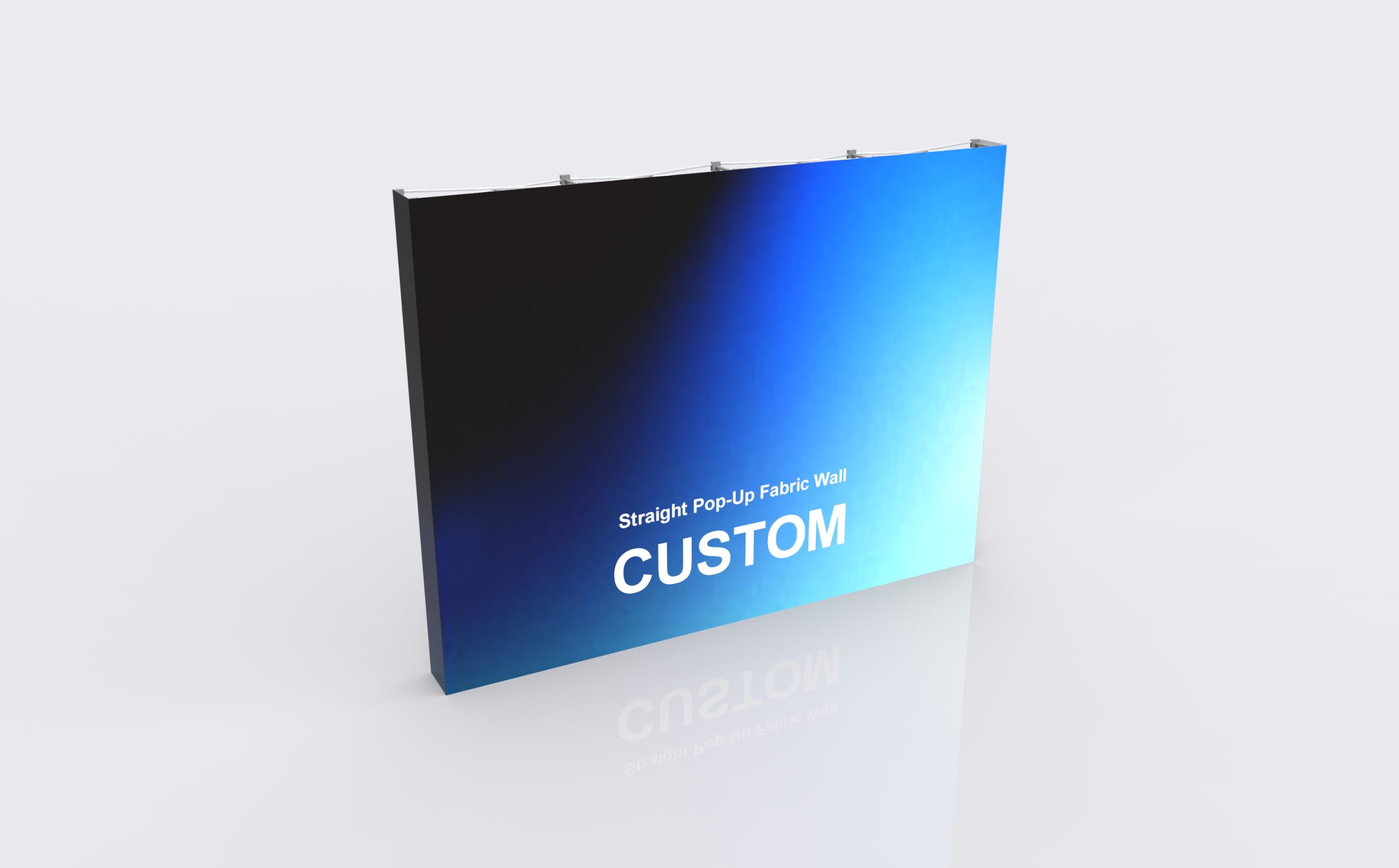

Design for a flat presentation surface
Use the template for the 3 × 3, 3 × 4 or 3 × 5 frame you will order. Keep small lettering and QR codes clear of edges and folds, and check them at final print size. A single clear headline above the counter is easier to use than a wall filled with small specifications. Compare straight and curved backwall layouts.
SELECT YOUR CONFIGURATION
What the current selector offers
Frame selection
4 × 3 grid is the size currently shown in the purchase area. Confirm the finished dimensions and graphic coverage on the quotation.
Transport case
Oxford Fabric Carry Bag is the default selection. Flight Case is the alternative listed in the selector.
Optional add-ons
Spotlight, Repair Kit and Shelf are selectable additions. Optional accessories and shipping are quoted separately.
Other items mentioned in the catalog
The catalog lists White Back and Soft Bag, plus Frame Only, Replacement Fabric Graphic, LED Display Lights (2 pack) and Convertible Podium Case. These are catalog references, not additional options in the current selector. Confirm availability, compatibility and inclusion in your quotation before ordering.
Applications
Product-led booth presentations
Arrange product images in columns on the flat face. Align a counter or cabinet in front while leaving the frame and its supports clear.
Interviews and event photographs
Plan a repeated logo or central brand mark around the camera framing. Preview the backdrop with the expected number of people rather than judging the graphic alone.
Travelling promotional teams
Use the same identified frame for successive campaigns and order matching replacement graphics as needed. Confirm packing and handling requirements before selecting a transport case.
Planning & ordering
Order essentials
State the frame grid and actual required width when enquiring. For a replacement print, send the existing frame identification and dimensions instead of ordering by the product name alone.
- 3 × 3, 3 × 4 or 3 × 5 grid and available booth width
- Maximum assembled depth, including supports
- Counter height and areas that must remain visible
Quotation checklist
- Complete kit, frame only or replacement graphic
- White-back selection and required graphic coverage
- Soft bag, optional lights or podium case
- Packed size, delivery destination and event date
Questions & answers
Does 3 × 4 mean a 3 m by 4 m wall?
No. It is a frame-grid designation. The listed 3 × 4 straight wall measures 302 cm wide by 227 cm high.
Will the 3 × 4 version fit a 3 m-wide space?
Its listed width is 302 cm, so it exceeds a strict 300 cm width. Check the actual allocation and choose a suitable size before approving artwork.
Can I use a curved pop-up graphic on this frame?
Do not assume it will fit. The straight and curved versions have different shapes and listed dimensions. Use the graphic template for the exact frame grid and attachment layout.
Is the display internally illuminated?
This is a fabric pop-up wall, not an SEG LED lightbox. A two-pack of LED display lights is listed as an optional accessory; confirm its inclusion and power requirements when ordering.

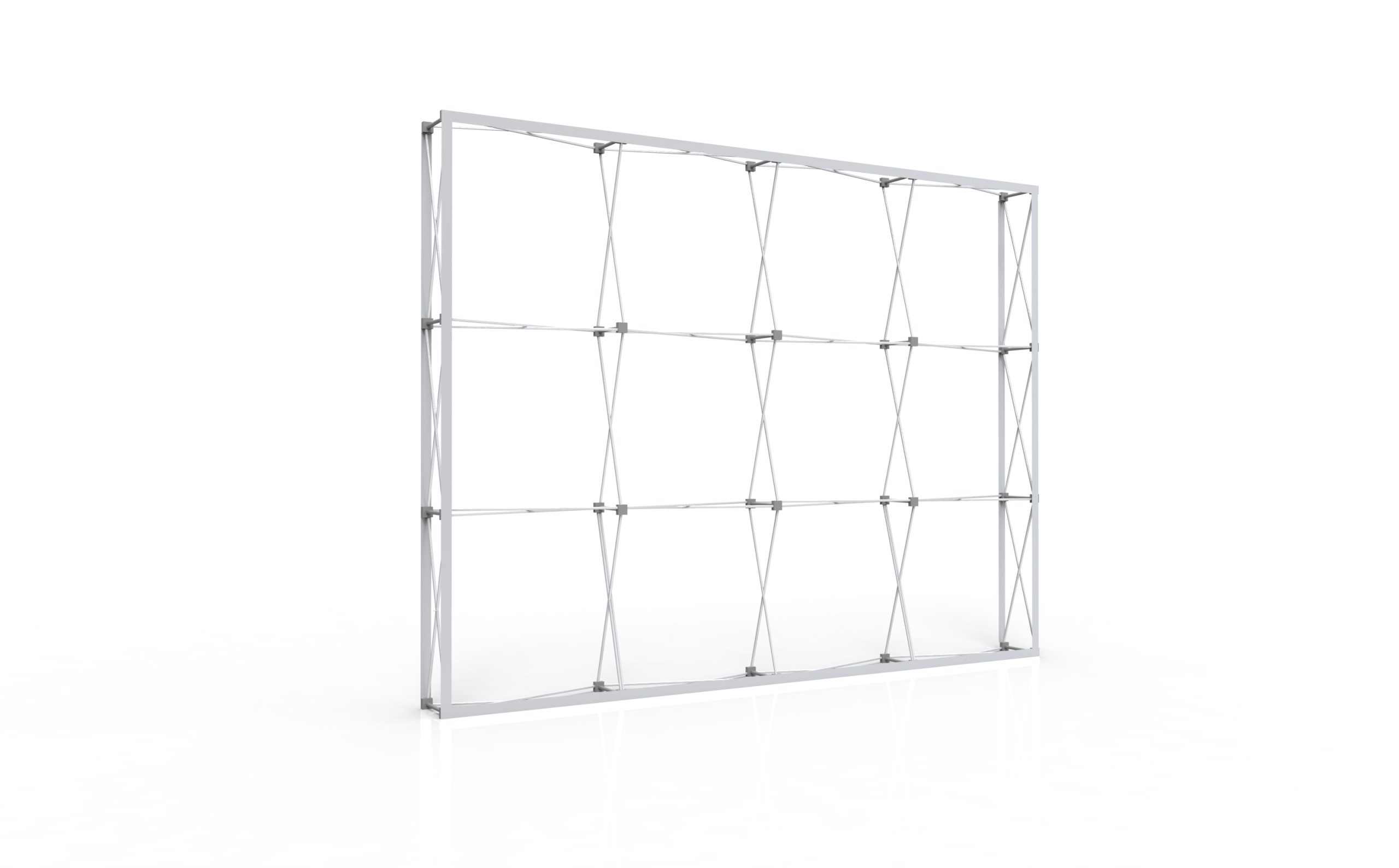

What should I check before repeated use?
Inspect the frame connections and graphic fastening points, follow the supplied folding instructions, and use the recommended packing. Request the kit’s packed weight and dimensions before planning staff transport.
