PRODUCT DETAILS

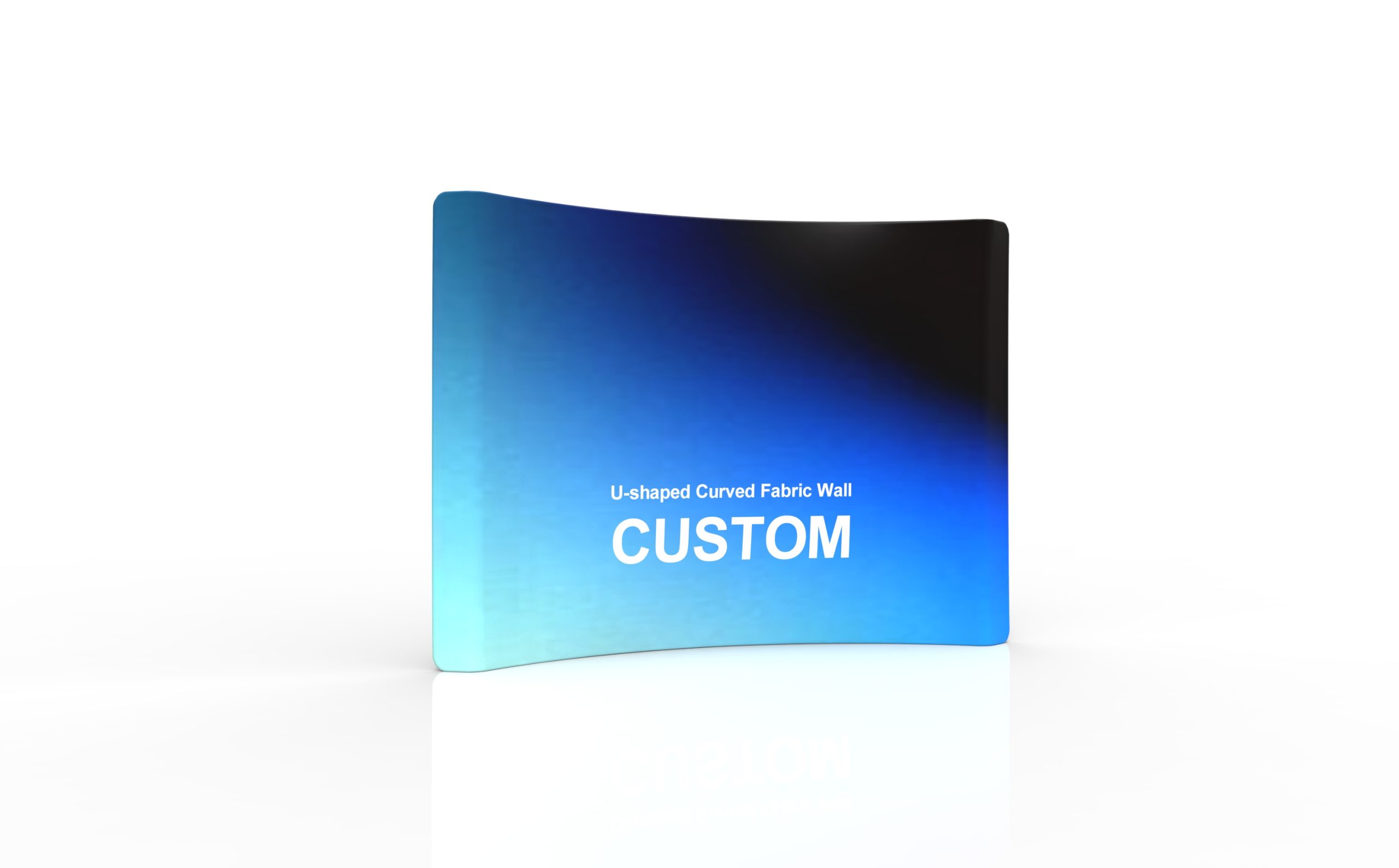

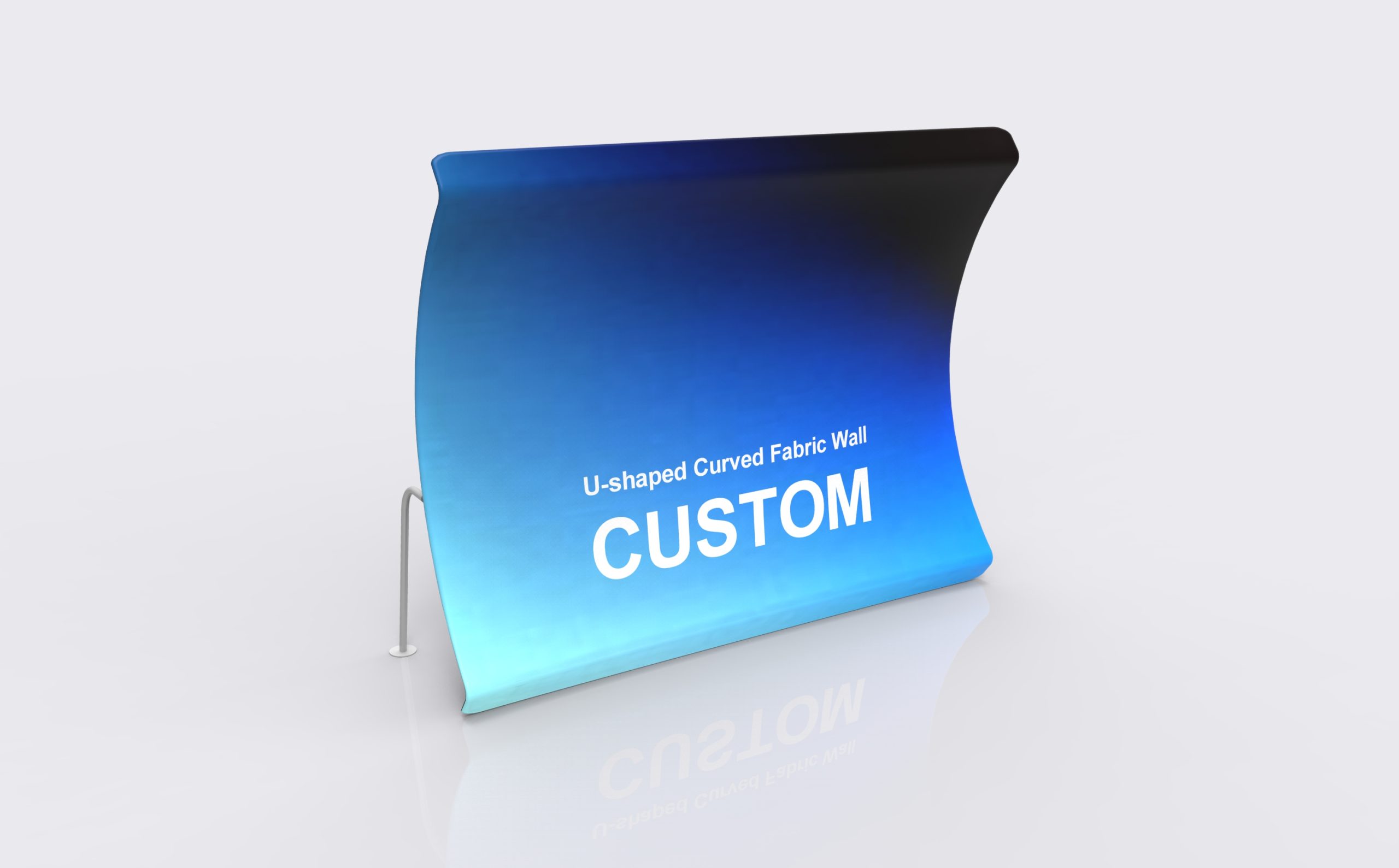

U-Shaped Curved Fabric Wall
A U-shaped fabric backwall gives a presentation three surrounding graphic areas and an open front. This model is offered in catalog sizes and custom dimensions, with single- or double-face graphics. Gray-painted steel feet are listed for the frame; their positions belong in the booth plan too.
Specifications & configuration
| Product format | Tension-fabric backdrop |
|---|---|
| Graphic material | 260 g stretch warp-knitted fabric |
| Printing | Full-color heat-transfer printing |

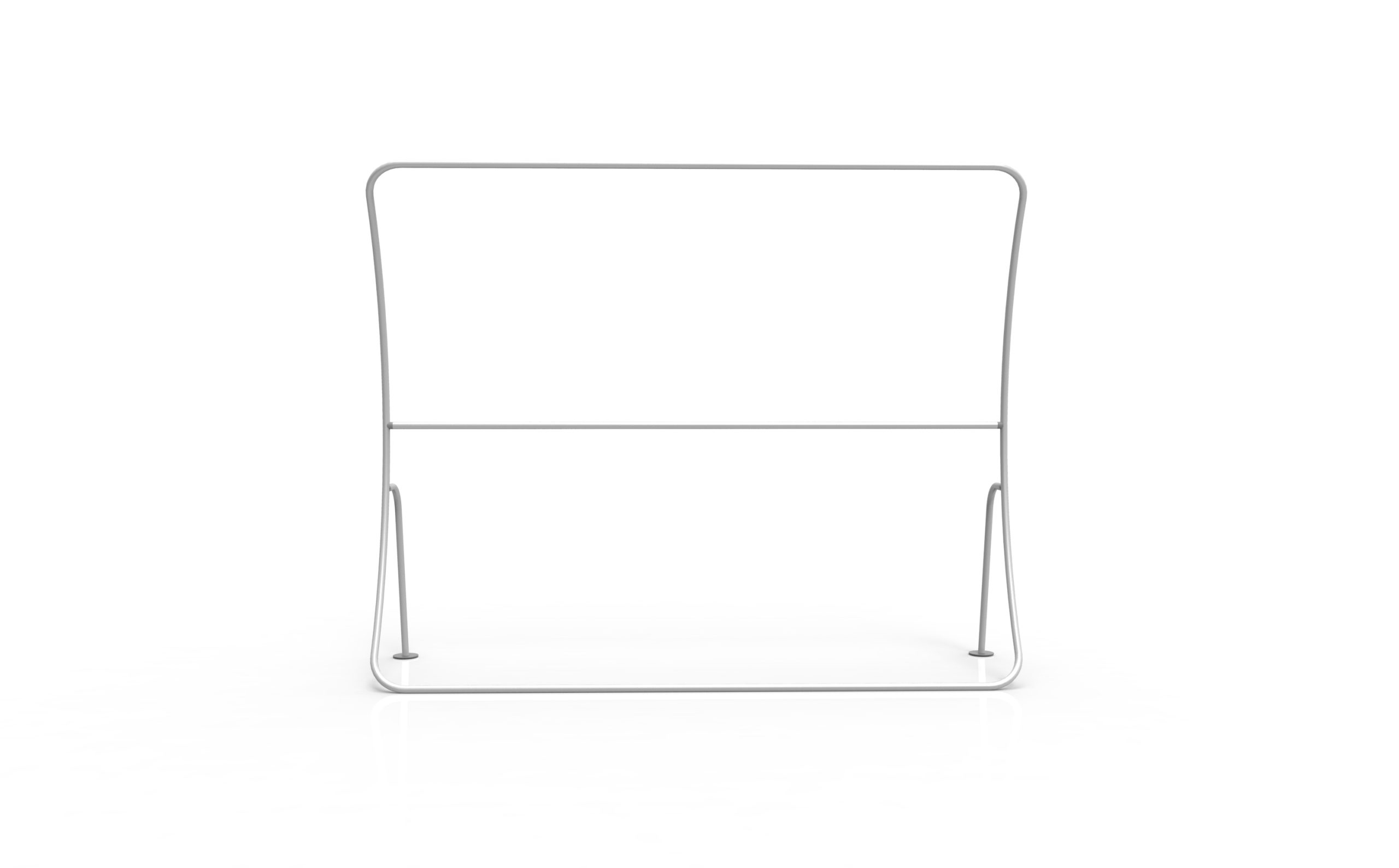

| Frame | 32 mm round aluminum tube; 1.2 mm wall thickness |
| Frame finish | Industrial sandblasted oxidation treatment in matte silver |
| Order type | Made to order; custom size and artwork |
| Size range — W × H | 240 × 231; 300 × 240; 400 × 240; 450 × 240; 500 × 240; 600 × 245 cm. Custom sizes available. |
| Print coverage | Single- or double-face graphic. |
| Support feet | Gray-painted steel foot plates. |
Product details
Form & footprint
The two returns determine the depth of the presentation area. Keep enough room between them for visitors, staff and displayed items.
Graphic placement
Use the back area for the primary message and the returns for supporting content, with a consistent reading direction from the entrance.
Suitable uses
Choose the U shape when you want a more defined display zone than a single straight backwall provides.
Order configuration
Check whether the outside faces remain visible. That decision affects graphic coverage but does not change the need to confirm the full footprint.
Artwork & print
Artwork preparation
Label the back and both returns in the artwork file. Review corner transitions and areas that furniture will cover.
Included & optional
Included in this configuration
- White Back
- Soft Bag
Optional accessories
- Frame Only
- Replacement Stretch-Fabric Graphic
- LED Display Lights (2 pack)
- Convertible Podium Case
- TV/Monitor Mount
Applications
Exhibition use
Define a three-sided exhibition presentation with an open front.
Display applications
Arrange a demonstration area within a surrounding graphic setting.
Retail displays
Create a temporary retail display with related messages on the back and returns.
Planning & ordering
Order essentials
Supply the interior width, return depth and preferred approach, together with the furniture or product positions inside.
- Finished dimensions and access requirements
- Artwork file and print orientation
- Selected components and packing requirements
Quotation checklist
- Quantity and preferred configuration
- Installation location and available space
- Any equipment dimensions or fit requirements
- Delivery destination and required date
Questions & answers
Should the outside be printed too?
That depends on visibility. The catalog allows single- or double-face graphics, so identify the exposed faces when ordering.
How should I prepare custom artwork?
For a printed configuration, use the template for the confirmed model and dimensions. Check the visible faces, edges and fitting areas before approval; a graphic from a similarly named product is not proof of a matching fit.
Does the reference image define everything included?
No. Have the quotation identify the product configuration, selected accessories and packing items individually. Reference images can show equipment or surrounding items that are not included in the order.
How should I plan production and delivery?
After production, Milin sends photos and video of the completed order for confirmation before dispatch. Include your delivery address and event date when requesting a schedule: manufacturing and transport are separate stages. Video installation guidance is available if you need help assembling the display.
