PRODUCT DETAILS
Rotating Light Boxes

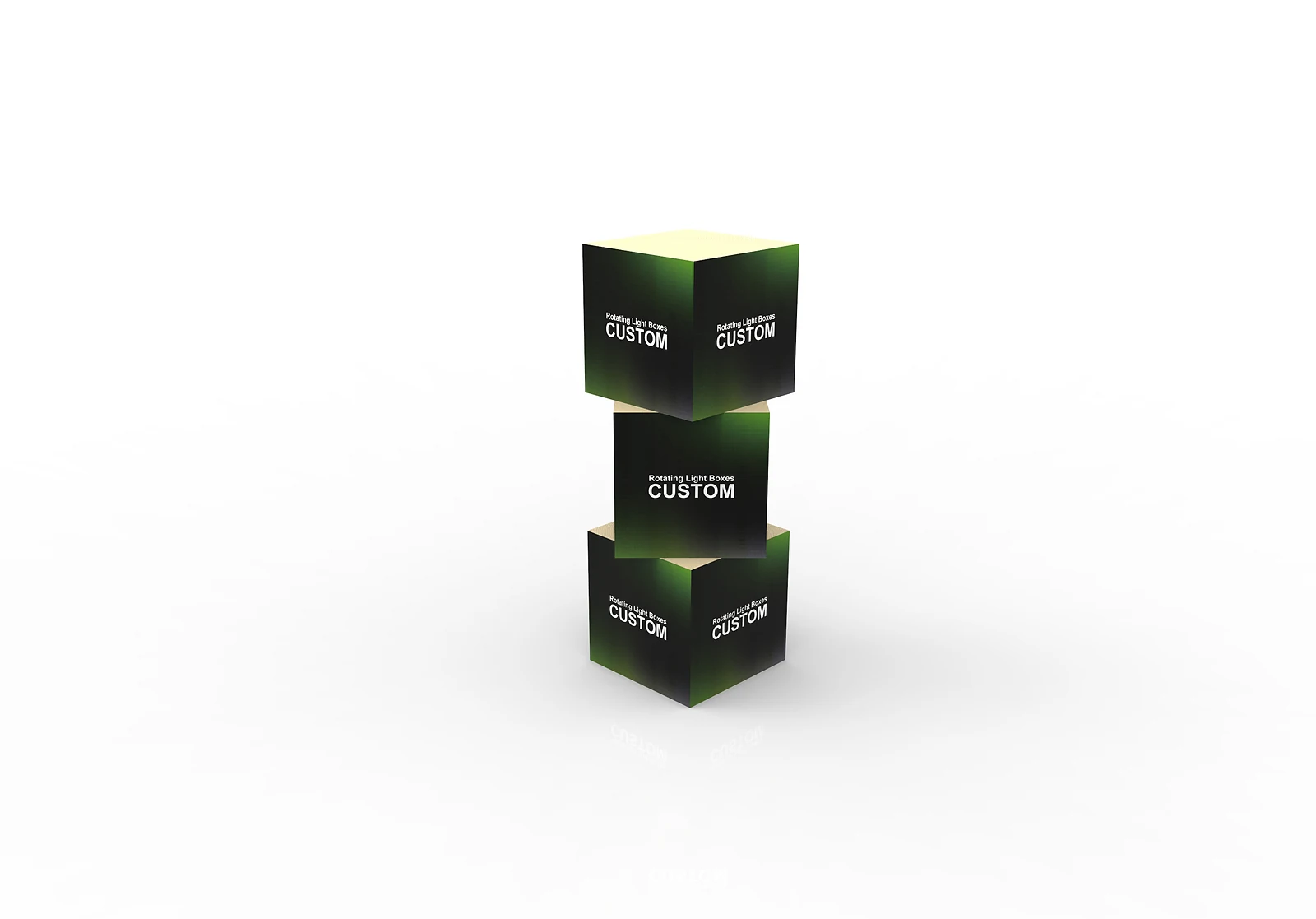

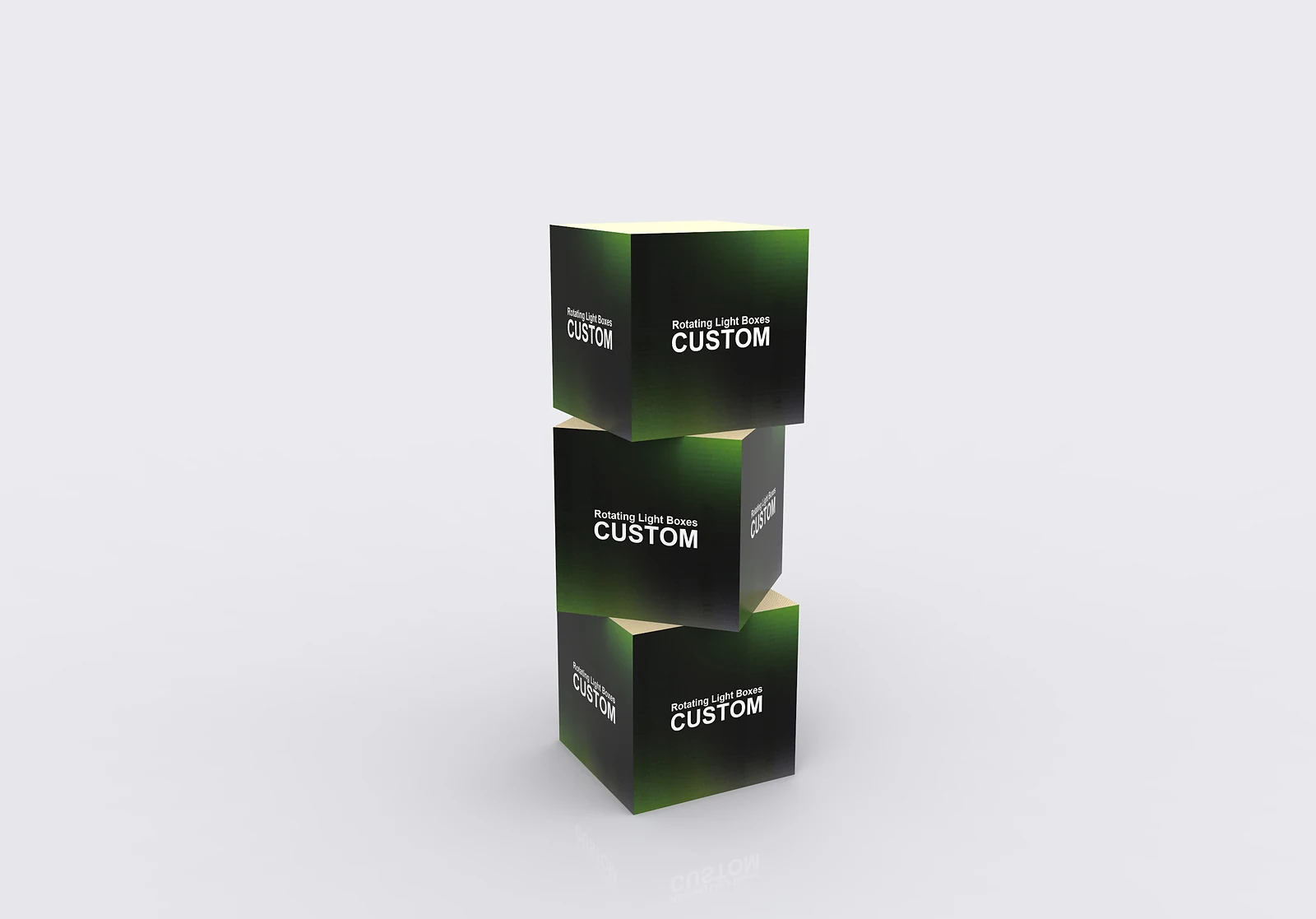

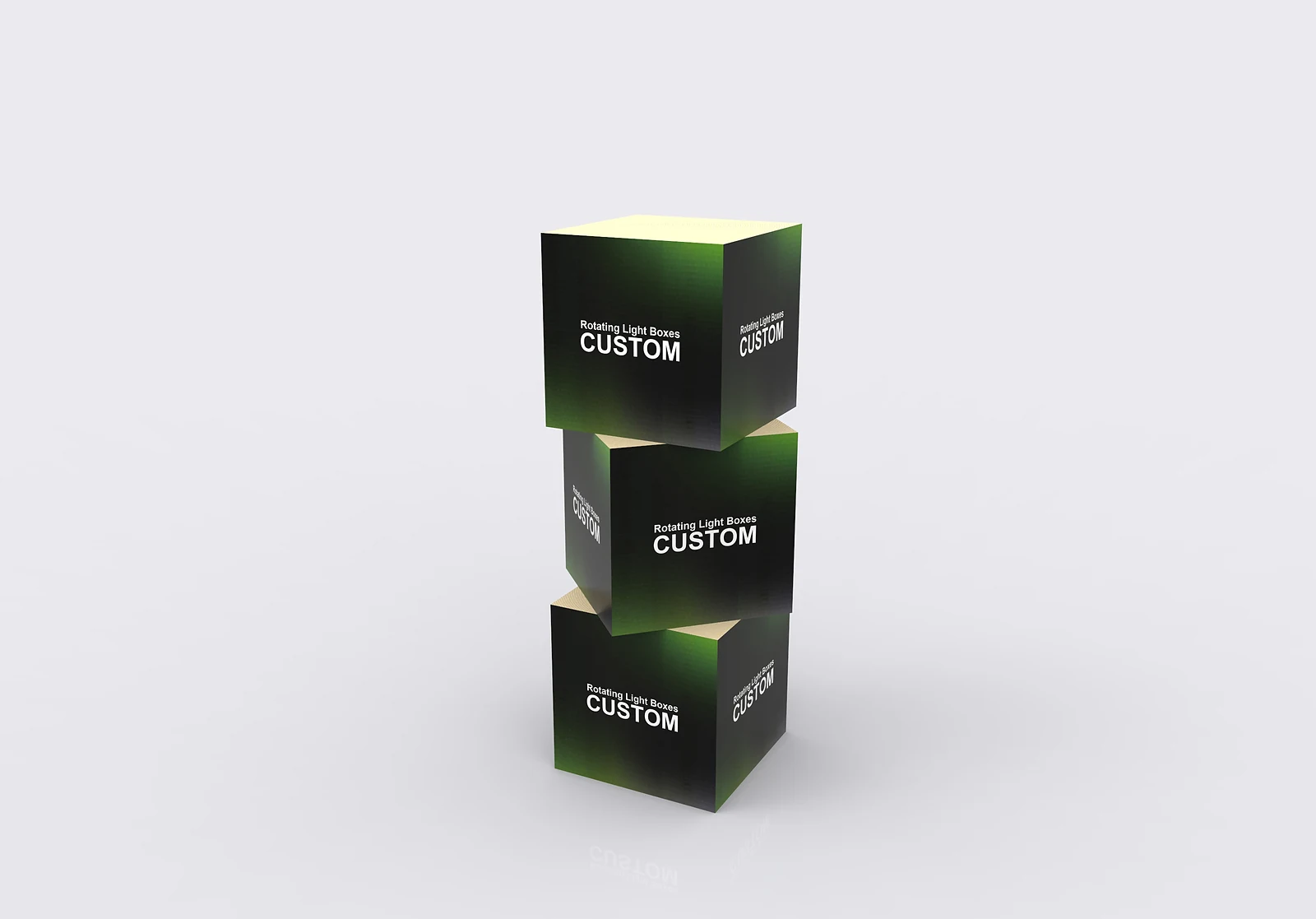

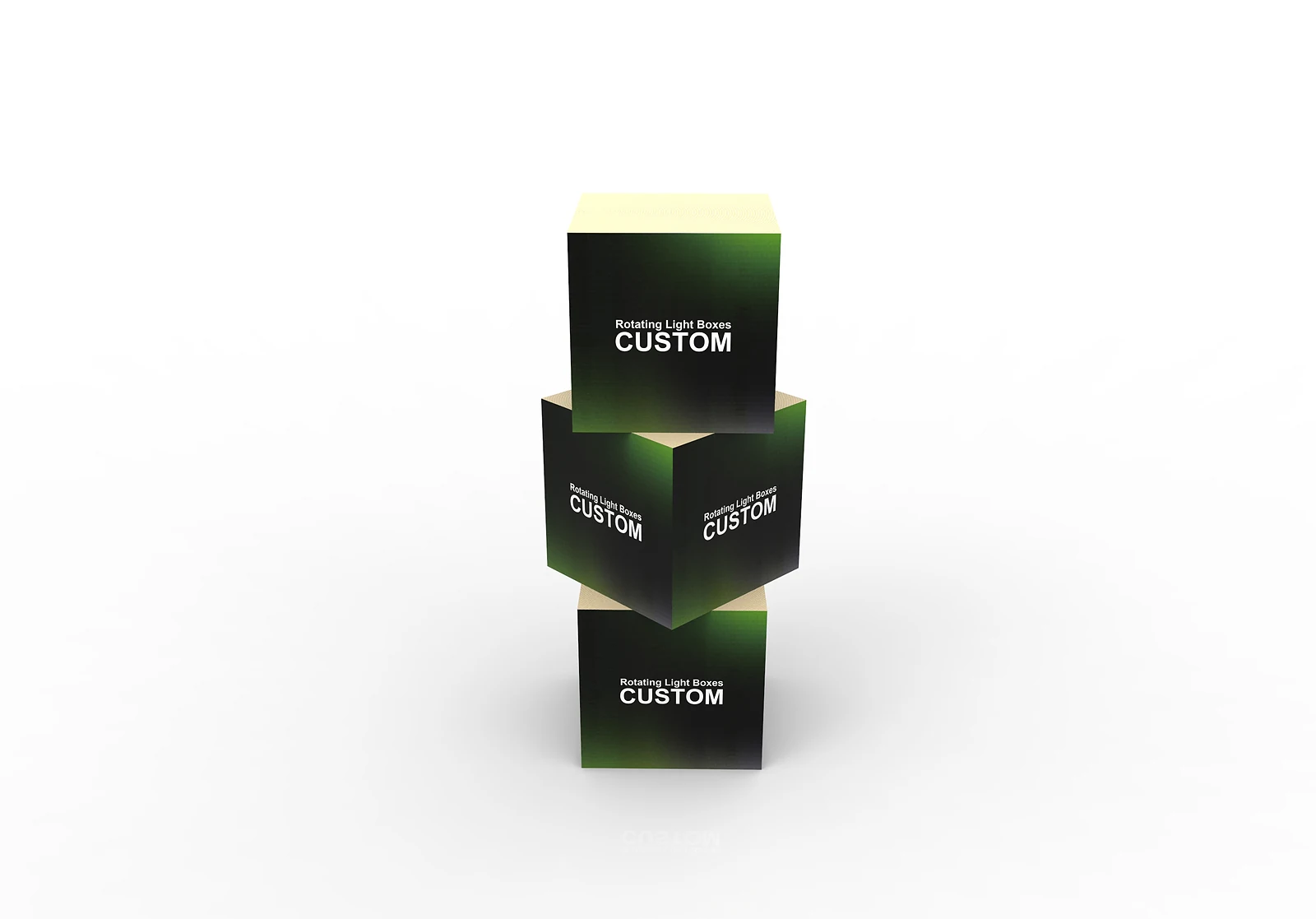

Rotating Light Boxes stack illuminated cube modules with bearings between the sections. The current quoted configuration uses 90 × 90 × 90 cm cubes. A 65 cm cube appears in catalog references and needs a separate quotation. Each cube has its own printed lightbox faces, so the design can change as the sections turn rather than behaving like one fixed rectangular graphic.
Specifications & configuration
| Product format | Stacked rotating lightbox display |
|---|---|
| Graphic system | Custom-printed SEG textile with silicone edge |
| Frame | Industrial aluminum-profile structure |
| Lighting | Integrated LED modules or edge lighting according to the approved design |
| Finish | Matte silver anodized appearance |
| Electrical | Voltage, plug and power configuration confirmed for the destination |
| Individual cube options | 90 × 90 × 90 cm in the current quote; ask separately about the 65 × 65 × 65 cm catalog option. |

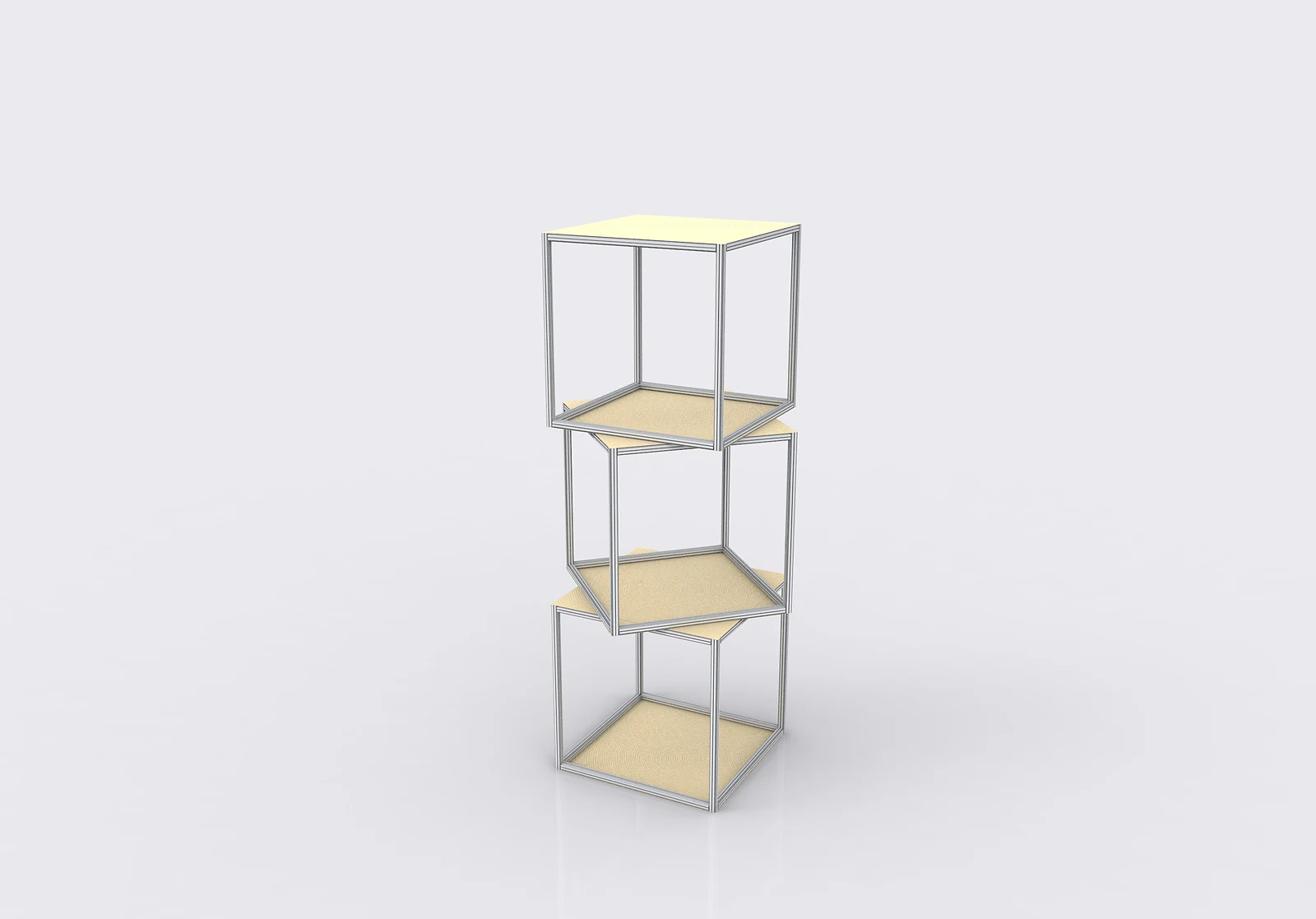

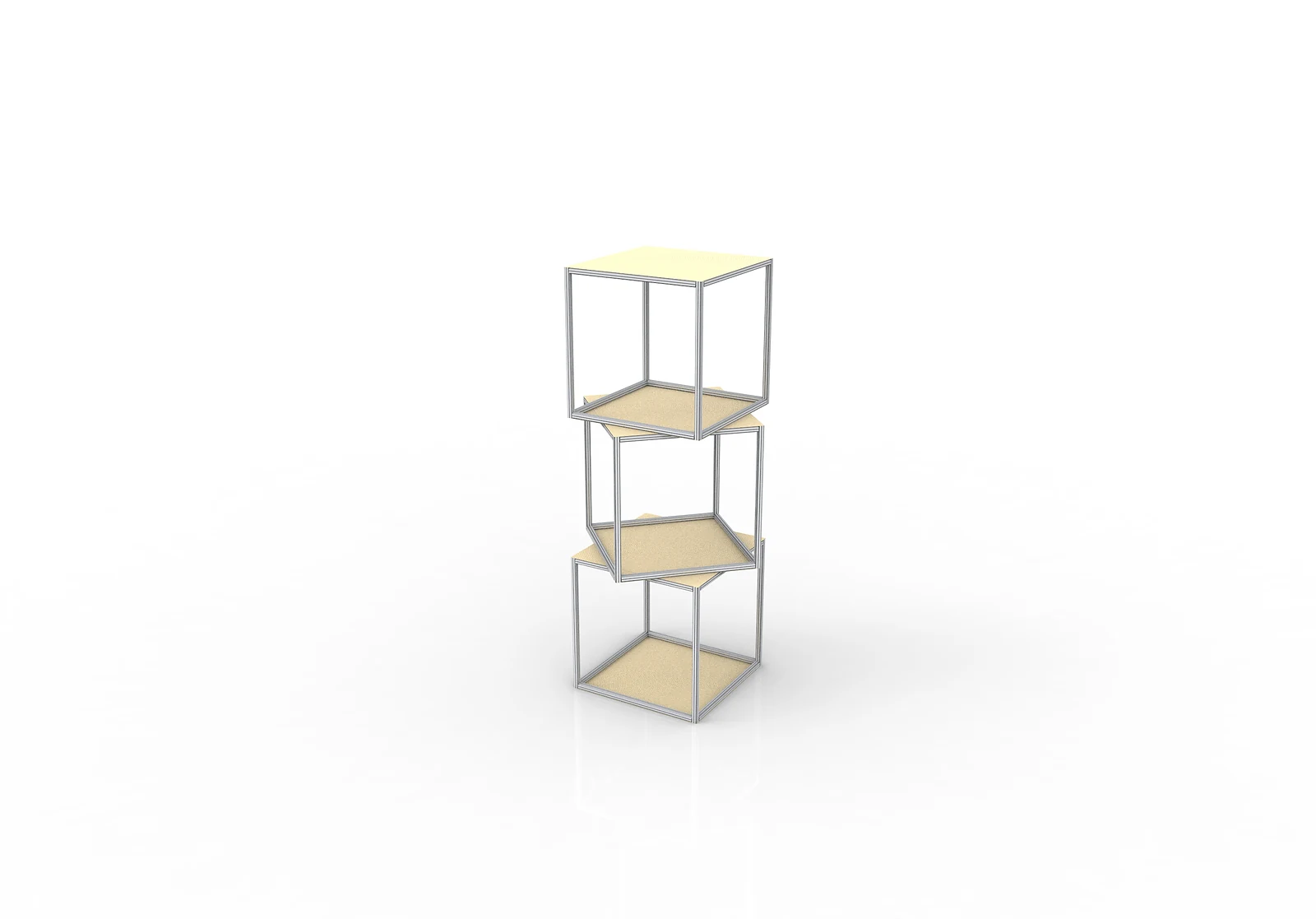

| Rotation construction | Wooden connecting plates and rotating bearings between cubes. |
| Illuminated faces | Double-groove round aluminum profiles retain the lightbox graphics; LED strips sit inside each cube. |
Product details
Form & footprint
The turning sections need clear space around them. Check the complete stacked height and the rotation envelope.
Graphic placement
Design each cube face to work independently; a continuous image across several sections will separate when they turn.
Suitable uses
Use the stacked form as a graphic feature where changing face orientation is useful to the presentation.
Order configuration
The catalog describes bearings but does not establish a motorized drive. Confirm the rotation mechanism instead of assuming automatic motion.
Artwork & print
Artwork preparation
Label each level and face on the artwork plan, keeping the individual messages readable on their own.
Included & optional
Confirm in the written quote
- Graphic print coverage
- Protective Packing
Accessories to discuss
- Frame Only
- Replacement SEG Fabric Graphic
- LED Module and Power Supply Set
- Shelf Kit
- TV/Monitor Mount
Applications
Promotional use
Present several campaign faces in a stacked display.
Exhibition use
Add an illuminated geometric feature to an exhibition.
Display applications
Arrange independent product messages on separate cube levels.
Planning & ordering
Order essentials
Specify cube size, number of levels and the intended rotation arrangement, along with power requirements.
- Finished dimensions and access requirements
- Artwork file and print orientation
- Selected components and packing requirements
Quotation checklist
- Quantity and preferred configuration
- Installation location and available space
- Any equipment dimensions or fit requirements
- Delivery destination and required date
Questions & answers
Does the display rotate automatically?
The supplied description identifies bearings between modules but does not confirm a motor. Ask for the drive arrangement in the quotation.
How should I prepare custom artwork?
For a printed configuration, use the template for the confirmed model and dimensions. Check the visible faces, edges and fitting areas before approval; a graphic from a similarly named product is not proof of a matching fit.
Does the reference image define everything included?
No. Have the quotation identify the product configuration, selected accessories and packing items individually. Reference images can show equipment or surrounding items that are not included in the order.
How should I plan production and delivery?
Production timing, dispatch arrangements and any assembly support should be confirmed for the selected configuration and destination. Share your delivery address and event date when requesting a quote.
