PRODUCT DETAILS
New Aluminum-Profile Frame
New Aluminum-Profile Frame uses 40 × 40 mm aluminum sections with a 1.8 mm wall to build a custom display arrangement. The sandblasted anodized finish leaves the metal visible. Specify the frame layout and graphic attachment together, including any shelf or screen positions.
Specifications & configuration
| Product format | Tension-fabric backdrop |
|---|---|
| Frame | Industrial aluminum-profile structure |
| Finish | Sandblasted oxidation treatment with matte silver appearance |
| Graphics | SEG or tension-fabric graphics as specified in the approved design |
| Configuration | Custom dimensions and module layout |
| Minimum order | 1 set |
| Profile section | 40 × 40 mm aluminum profile; 1.8 mm wall thickness. |
| Frame sizing | Custom dimensions and module layout. |
Product details
Set the structural layout before the artwork
Define the overall dimensions, module openings and support locations first. The clear graphic opening and finished frame dimensions are different measurements, both of which should appear on the approved drawing.
Choose the actual graphic fitting
SEG panels and other tension-fabric graphics have different edge and attachment requirements. Specify the selected fitting system before requesting the production template; a photograph of the completed display is not enough to identify it.
Submit equipment details early
For a screen or shelf, provide its dimensions, weight and preferred position. Request confirmation of the compatible mount and supported assembly. Profile dimensions alone do not establish a safe working load.
Plan parts and packing together
Ask for the frame parts, connectors, supports and graphic components to be identified in the quotation. Check how the longest sections will be packed and whether the packages suit your intended transport and site access.
Artwork & print
Work from the confirmed opening and edge detail
Request the template for the selected frame configuration and graphic attachment. Check visible area, fitting allowance and any interrupted sections around equipment. Keep essential text away from frame edges and confirm the printed side of each graphic before approval.
Included & optional
Included in this configuration
- White Back
- Soft Bag
Optional accessories
- Frame Only
- Replacement Stretch-Fabric Graphic
- LED Display Lights (2 pack)
- Convertible Podium Case
- TV/Monitor Mount
Applications
Custom exhibition structures
Use the profile layout to define the display dimensions and graphic openings required by the stand. Include all support positions on the booth plan.

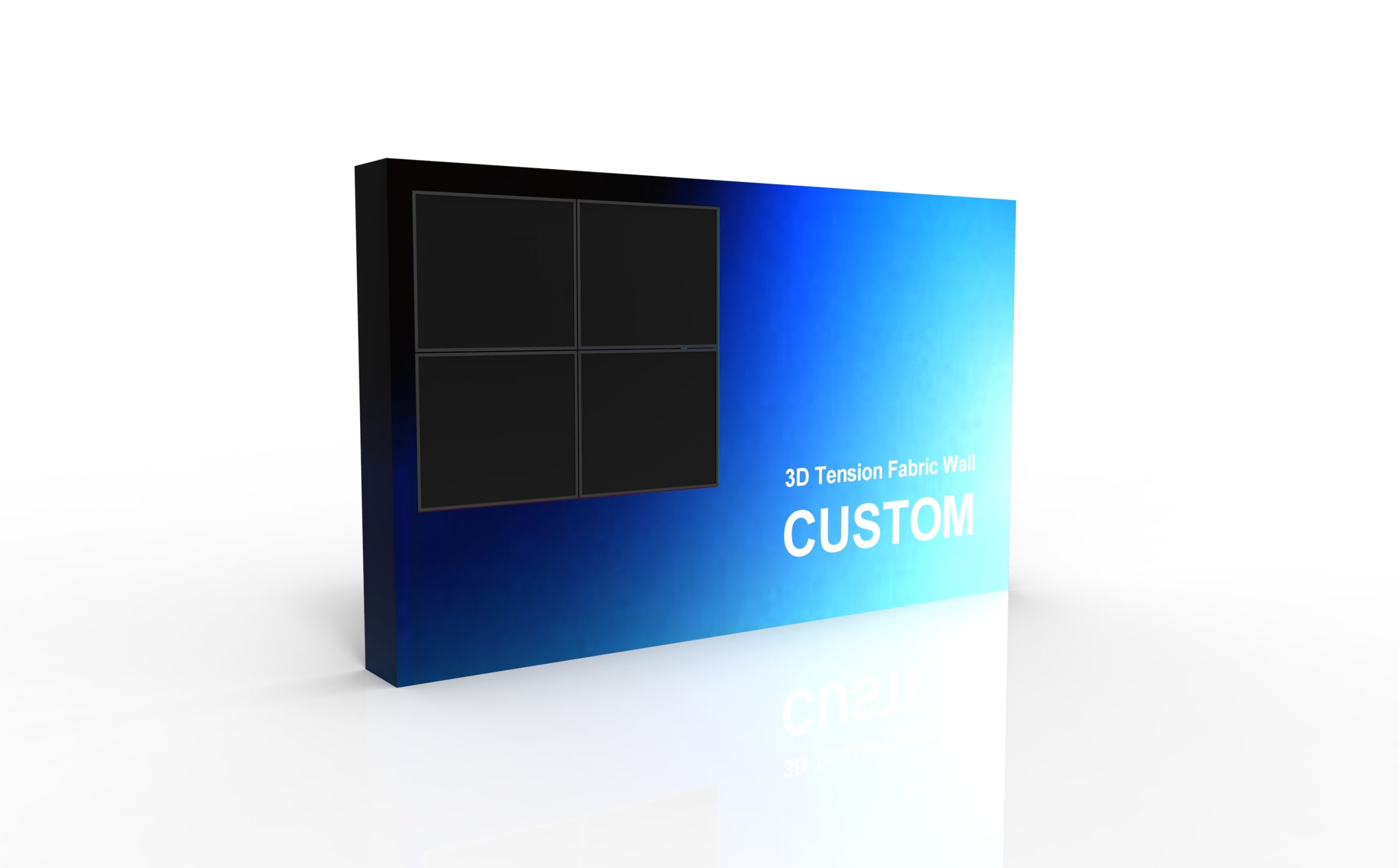

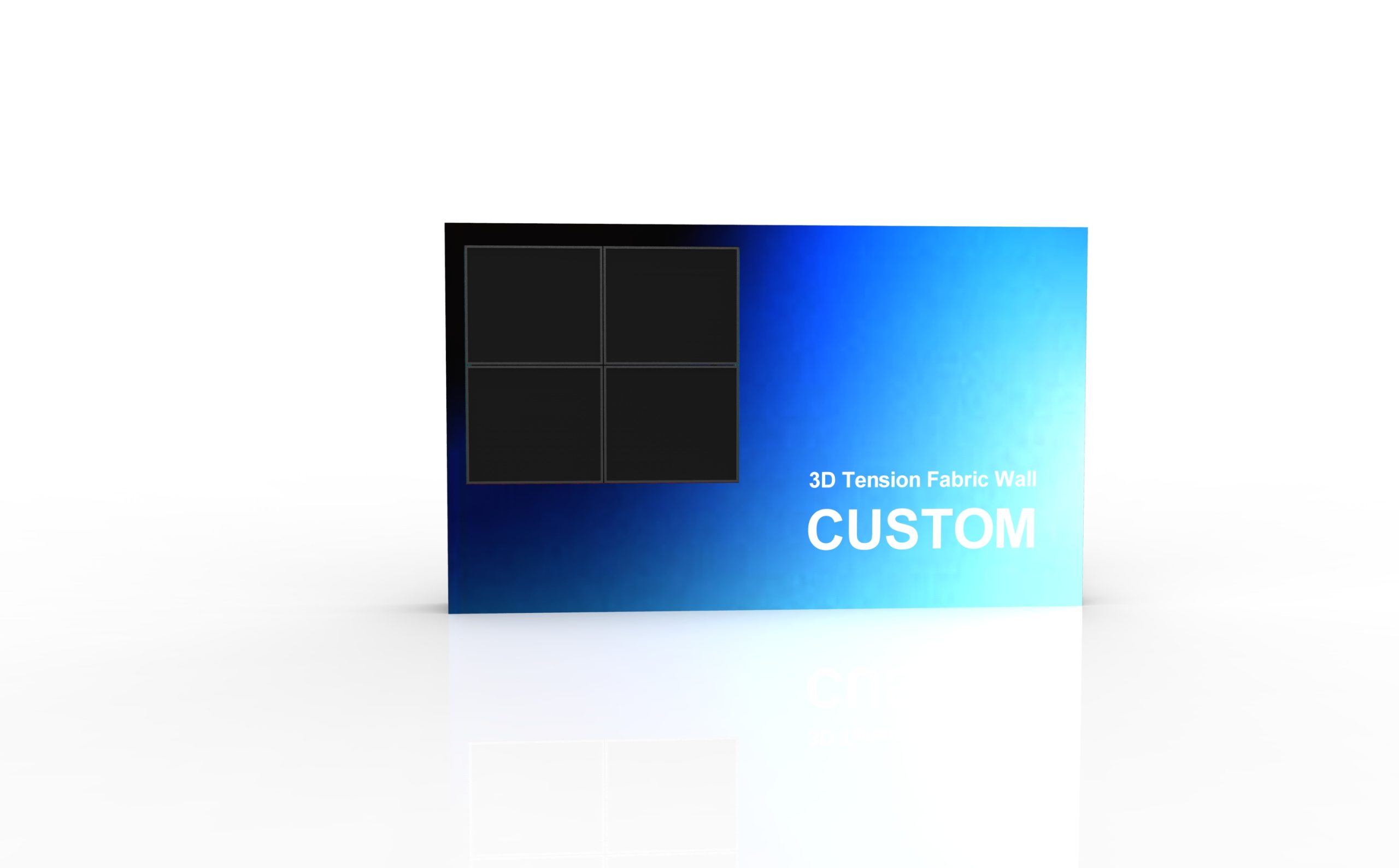

Displays around equipment
Plan the structure together with the screen, product or shelf that it must accommodate. Confirm the attachments and load requirements before the drawing is approved.
Project-specific campaign frames
Choose the frame proportions to suit the campaign image and installation area. Retain the exact fitting specification if replacement graphics will be needed later.
Planning & ordering
Order essentials
Send a dimensioned sketch showing the frame, graphics and any mounted equipment. Ask for one complete component schedule so the proposal accounts for fittings and supports as well as the aluminum sections.
- Outside dimensions and required clear graphic openings
- SEG or other fabric fitting, with printed sides identified
- Equipment dimensions, weight and proposed mounting positions
Quotation checklist
- Profile sections, connectors and support components
- Graphic supply and confirmed attachment details
- Approved mounts, packing and assembly information
- Number of sets, destination and required delivery date
Questions & answers
What profile section is listed?
The catalog specifies 40 × 40 mm aluminum profiles with a 1.8 mm wall thickness and a sandblasted anodized finish. The final arrangement is custom-sized.
Will any SEG graphic fit this frame?
No. Confirm that the selected design uses the required SEG channel and specify the matching graphic dimensions and edge details. Other tension-fabric fittings require their own templates.
Can the frame carry a monitor?
Submit the monitor’s dimensions, weight and mounting pattern for model-specific review. Confirm the mount, connection and supporting arrangement; the profile section is not a load rating.
Is this an illuminated lightbox?
This listing describes an aluminum-profile display structure. Do not infer internal LED lighting from the use of SEG graphics. Any lighting components must be identified in the selected configuration.
Can I order a single custom set?
The listed minimum order is one set. Provide the dimensions, graphic system and equipment requirements so the quotation can define that set completely.
