PRODUCT DETAILS

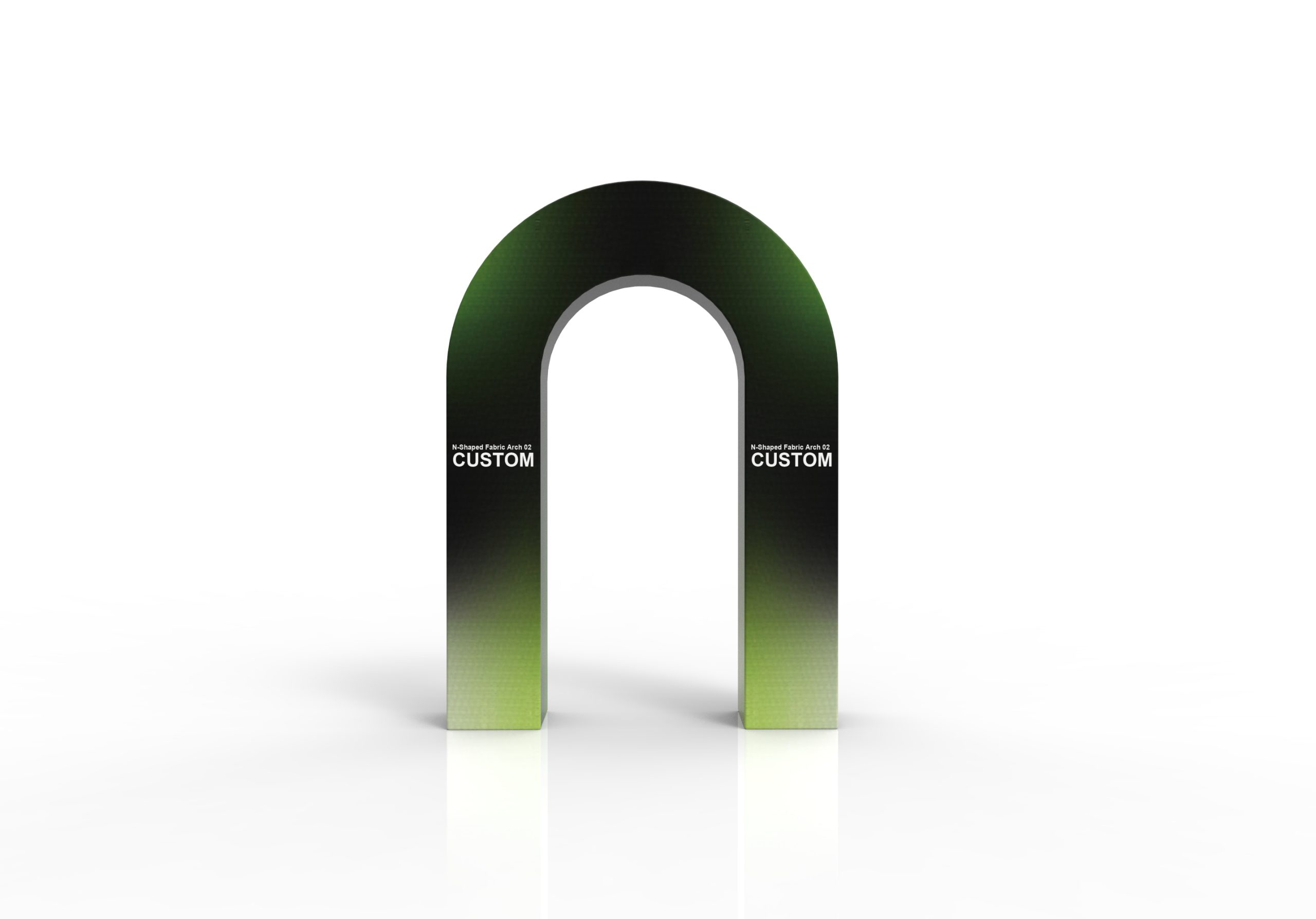

N-Shaped Fabric Arch 02
N-Shaped Fabric Arch 02 has a custom round-tube framework with a full-wrap printed fabric cover. The shaped outline gives it a different presence from a rectangular doorway. Its usable opening, full footprint and viewing directions should be resolved together for the intended exhibition or event position.
Specifications & configuration
| Product format | Fabric entrance structure |
|---|---|
| Graphic material | 260 g stretch warp-knitted fabric |
| Printing | Full-color heat-transfer printing |

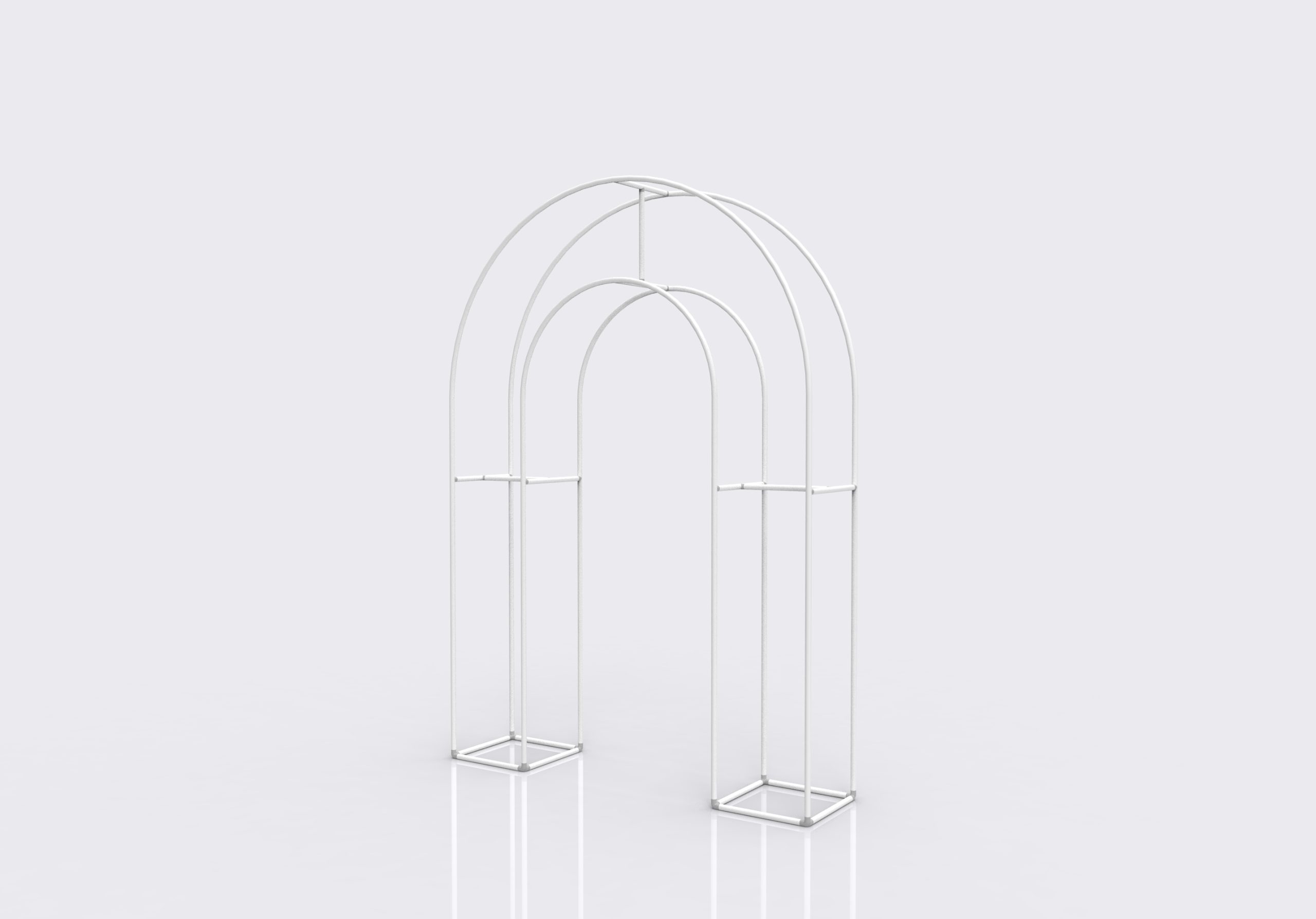

| Frame | 32 mm round aluminum tube; 1.2 mm wall thickness |
| Frame finish | Industrial sandblasted oxidation treatment in matte silver |
| Order type | Made to order; custom size and artwork |
| Cover construction | Full-wrap printed stretch fabric on a custom round-aluminum-tube frame. |
Product details
Form & footprint
Measure the passage through the actual outline, including any lower or inward-projecting portions.
Graphic placement
The full wrap needs artwork orientation on the returns as well as on the main face.
Suitable uses
Consider it for a shaped branded threshold where the outline is part of the event design.
Order configuration
Do not assume version 01 and version 02 share the same frame or fabric pattern.
Artwork & print
Artwork preparation

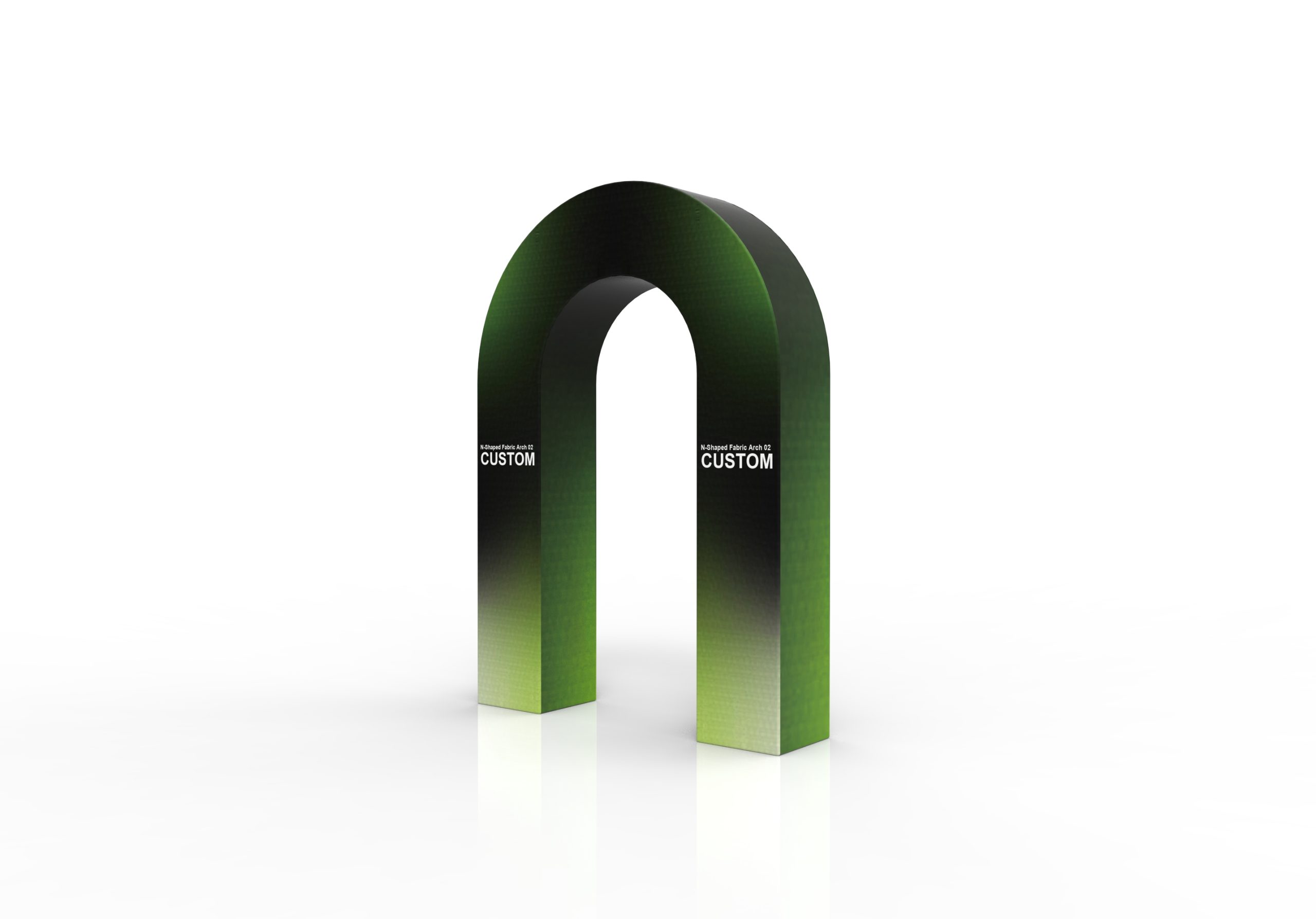

Confirm the assembled version 02 drawing before laying out a graphic that continues around the structure.
Included & optional
Included in this configuration
- White Back
- Soft Bag
Optional accessories
- Frame Only
- Replacement Fabric Graphic
- Shelf Kit
- LED Display Lights (2 pack)
- TV/Monitor Mount
Applications
Entrances & routes
Introduce a branded event route.
Entrances & routes
Frame a shaped entrance to an activity area.
Exhibition use
Create a distinctive fabric feature within a larger booth.
Planning & ordering
Order essentials
Identify version 02 and send the opening requirements, maximum height and approach directions.
- Finished dimensions and access requirements
- Artwork file and print orientation
- Selected components and packing requirements
Quotation checklist
- Quantity and preferred configuration
- Installation location and available space
- Any equipment dimensions or fit requirements
- Delivery destination and required date
Questions & answers
Can I reuse another N-arch graphic?
Use the fabric pattern for the version 02 frame. Compare its assembled dimensions and contours before ordering a replacement cover.
How should I prepare custom artwork?
For a printed configuration, use the template for the confirmed model and dimensions. Check the visible faces, edges and fitting areas before approval; a graphic from a similarly named product is not proof of a matching fit.
Does the reference image define everything included?
No. Have the quotation identify the product configuration, selected accessories and packing items individually. Reference images can show equipment or surrounding items that are not included in the order.
How should I plan production and delivery?
After production, Milin sends photos and video of the completed order for confirmation before dispatch. Include your delivery address and event date when requesting a schedule: manufacturing and transport are separate stages. Video installation guidance is available if you need help assembling the display.
