Modular Tension Fabric Display 04
A taller center graphic flanked by lower side panels gives this arrangement a defined focal point. Combine custom fabric-covered modules around your campaign, with gray-painted steel feet and a layout sized for the event space.

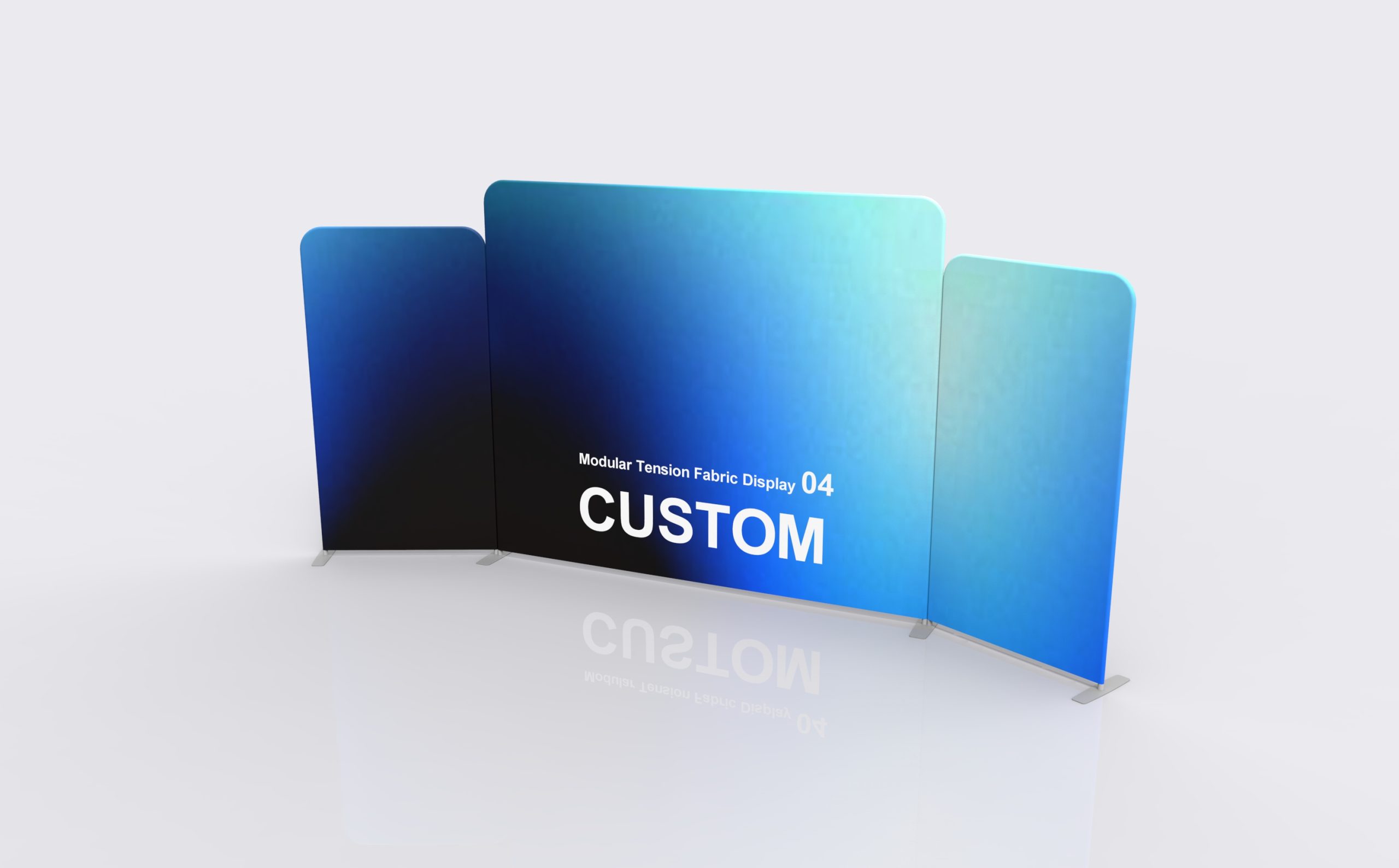

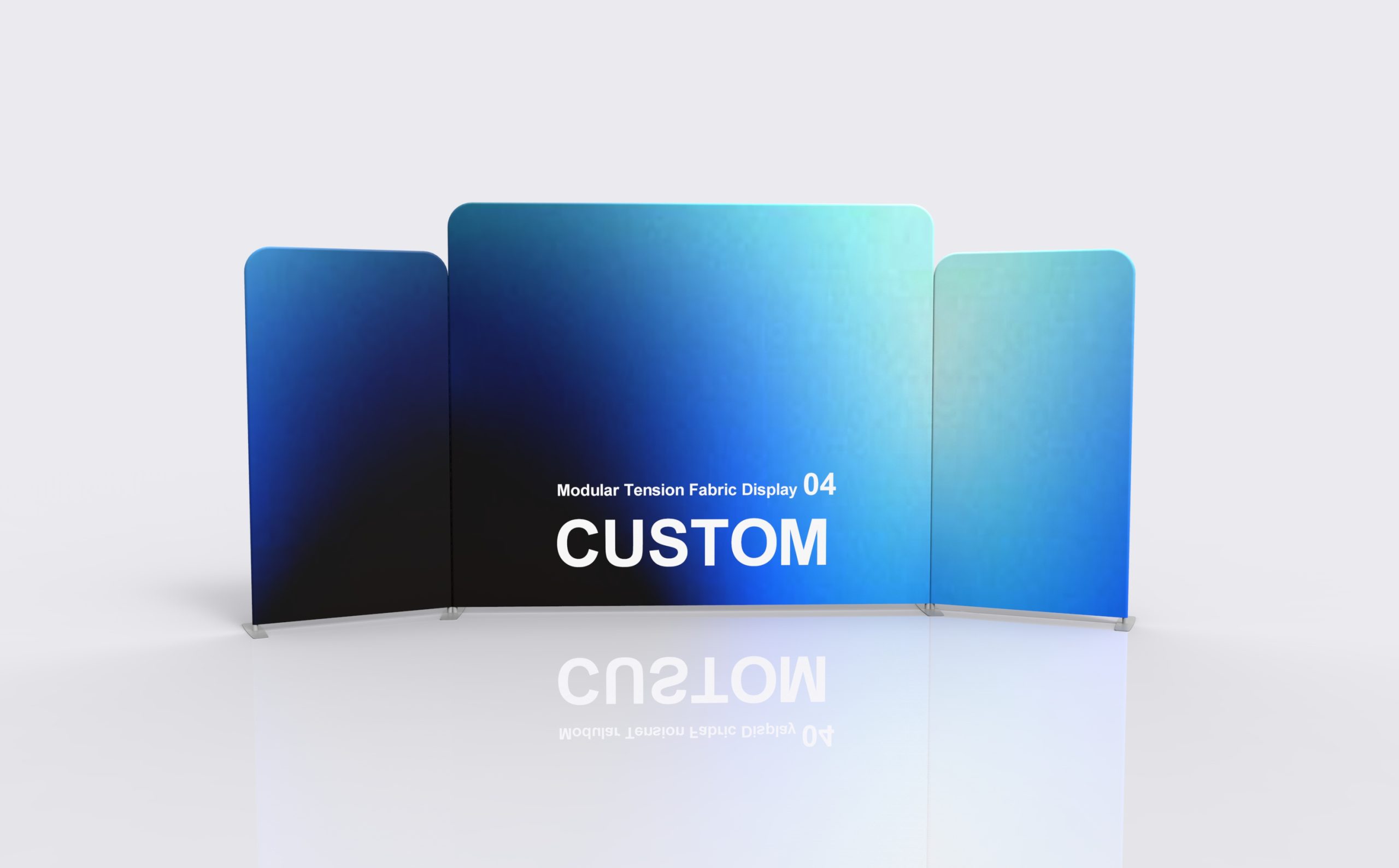

Shown as a stepped-height composition. Panel dimensions and the selected combination follow the approved drawing.
Give each part of the wall a clear job
Introduce the offer
Use the side panel for a product category, campaign benefit or short introduction. Keep text within its own visible face so the message remains readable across the change in panel height.
Lead with the main message
The taller central area is the natural location for the brand name and principal campaign image. Compose the headline for the complete center graphic, then check how the artwork divides across the underlying frame sections.
Support the conversation
Reserve this area for a product detail, supporting visual or contact information. Position it above any planned counter or equipment that would otherwise hide the graphic.
This approach suits a campaign backdrop, a wall separating product stories at an exhibition, or a branded temporary presentation. Use an assembled artwork proof to check continuity where panels meet.

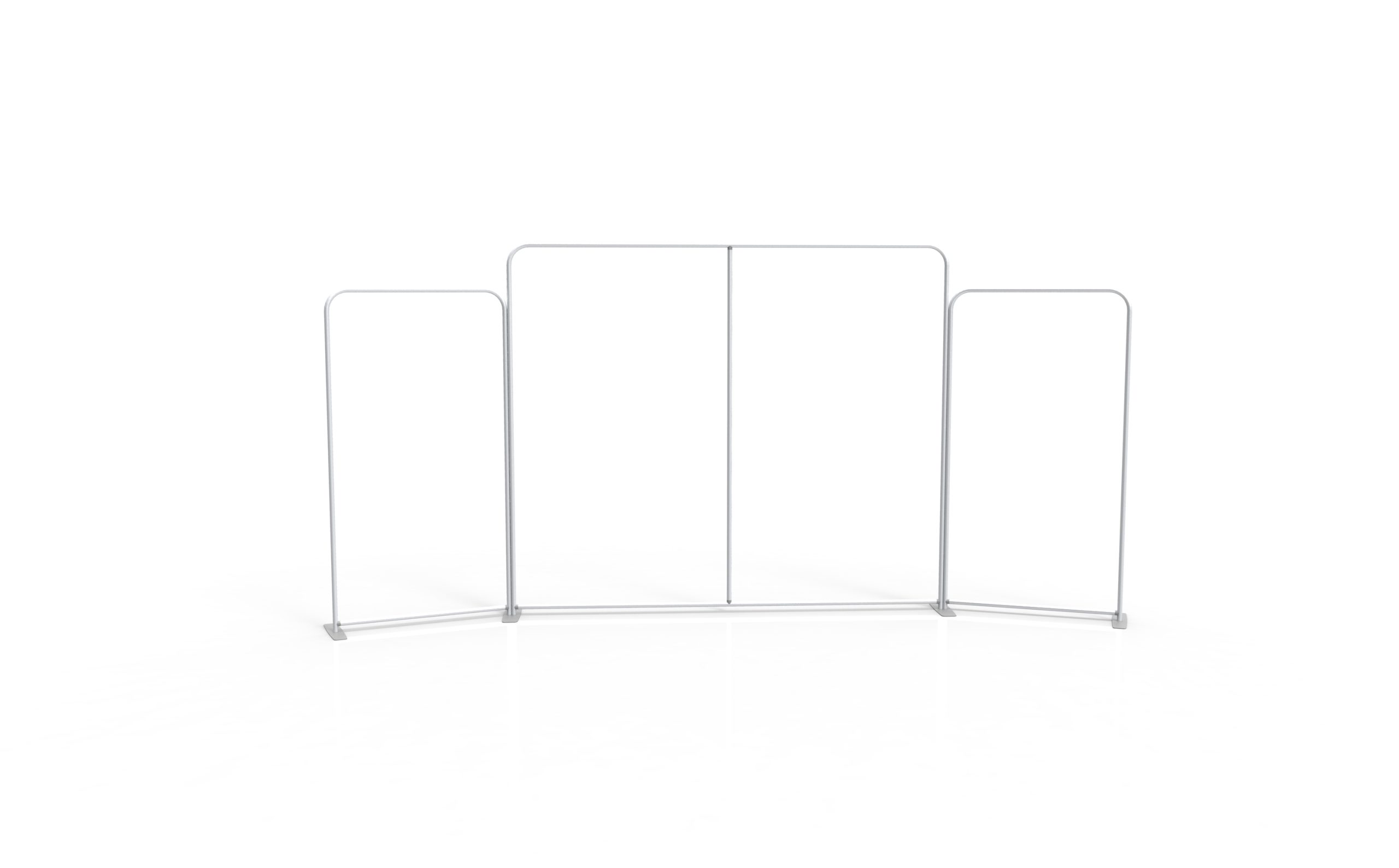

Fabric graphics over a tubular frame
The stretch fabric is printed in full color by heat transfer. The round aluminum frame receives a matte-silver finish, with gray-painted steel feet specified for the modular range.
Plan both the displayed width and the floor space occupied by the feet. A front elevation alone does not show the complete installation footprint.
| Product format | Tension-fabric backdrop |
|---|---|
| Graphic material | 260 g stretch warp-knitted fabric |
| Printing | Full-color heat-transfer printing |
| Frame | 32 mm round aluminum tube; 1.2 mm wall thickness |
| Frame finish | Industrial sandblasted oxidation treatment in matte silver |
| Frame preparation | Age-hardened aluminum; chamfered tube ends; elastic-cord connections and assembly markings |
| Order type | Made to order; custom size and artwork |
| Module specification | Custom sizes, shapes and combinations; gray-painted steel feet. |
| Current purchase selection | 20ft · Double Sided |
Prepare the set in assembly order
Match the sections
Lay out the center and side-frame parts against the approved arrangement. Use the tube markings to keep each group together.
Build the frames
Join the round-tube sections in the indicated sequence. The tubular system uses elastic-cord connections and chamfered tube ends.
Fit each graphic
Match the fabric to its labeled frame and face. Follow the supplied assembly guide for fabric fitting, feet and final module connections.
Check the footprint
Place the completed set within the agreed booth boundary. Keep feet, adjacent counters and visitor routes clear of one another.
Design the reverse as deliberately as the front
The current purchase selection is Double Sided. Identify what visitors see from each direction rather than assuming that duplicating the front artwork will give the intended reading order.
One layout proof, labeled panel files
Show the entire arrangement on the proof. Label individual files by panel position, face and orientation, using the templates for the confirmed dimensions and shaped outlines.
Keep replacement graphics identifiable
Retain the approved frame dimensions, graphic templates and artwork revision. A Replacement Graphic Set needs to match the existing frame; a similar model name is not enough to confirm fit.
Build the quotation around your set
Graphics and protection
Listed for this configuration: Full Graphic Set and Protective Packing.
The transport choices are Oxford Fabric Carry Bag and Flight Case. Specify the selected modules, printed faces, connectors and feet together with the packing requirement.
Optional components
Frame Only, Replacement Graphic Set, Additional Connector Kit, Shelf Kit and TV/Monitor Mount.
The purchase area also offers Spotlight, Repair Kit and Shelf. Equipment sizes, loaded weights and mounting positions must be checked with the chosen frame configuration.
Send the arrangement, not just the model number
Include finished dimensions, access requirements, booth location and available space, artwork and print orientation, quantity, selected components, packing choice, delivery destination and required arrival date.
Milin provides finished-order photos and video before dispatch and can provide video installation guidance. Optional accessories and shipping are quoted separately.
Questions about Model 04
Are the dimensions and panel heights fixed?
No. The catalog allows custom sizes, shapes and combinations. The purchase area currently offers 20ft with Double Sided printing. Confirm the overall width, each panel height and the support footprint on a dimensioned arrangement before preparing artwork.
Can the side panels be rearranged for another booth?
The product is modular, but a different arrangement needs compatible connectors and suitable feet. Send the existing frame drawing and the proposed layout before ordering an Additional Connector Kit or new graphics. Reuse is subject to the actual combination.
How should I prepare artwork for the two sides?
Use the templates for the approved frame. Label each panel, front and reverse face, and viewing orientation. A continuous image must be divided at the correct panel boundaries; use an assembled proof to check scale, alignment and fitting allowances.
Does the reference image define everything included?
No. Full Graphic Set and Protective Packing are listed for this configuration. The quotation should identify the complete frame-and-graphic set, feet, connectors, printed faces and any selected accessories individually.
Can I add a shelf or a monitor?
Shelf Kit and TV/Monitor Mount are listed options. Provide the equipment dimensions, loaded weight and mounting position for a configuration review. Tube diameter alone is not a load rating, and a mount should not be added to an unapproved frame position.
How are production and delivery confirmed?
Send the quantity, final layout, artwork, packing choice, delivery address and required arrival date. Milin supplies photos and video of the completed order for confirmation before dispatch. Manufacturing and transport are separate stages; video installation guidance is available for assembly questions.
