Modular Tension Fabric Display 01
A wide printed backwall, a taller overlapping panel and a side shelf area give Model 01 its distinctive outline. Custom-printed stretch fabric covers the round-tube frame; gray-painted steel feet support the arrangement.
Model 01 separates a broad campaign backdrop from a taller foreground graphic. Use the shelf area for selected products only when the shelves and their supports are included in your order.
The details that define Model 01
Overlapping tall panel
The tall panel overlaps the broad backwall. Put a short brand or product identifier on this foreground panel and keep the main campaign image on the rear wall. Leave important copy out of the area hidden by the overlap.
Side shelf area
The reference frame includes projecting shelf supports at the opposite side. Select Shelf or request a Shelf Kit with the product dimensions and weight so the support arrangement can be checked.
Fabric-covered frame
The printed stretch fabric covers the tubular structure. Matte-silver frame members and gray-painted steel feet sit behind and below the graphics, rather than acting as the main visual surface.
Frame, fabric and full specifications
The drawing for your order identifies panel sizes, connections, shelf supports and steel-foot positions. Include the feet when checking the space next to counters or visitor routes.
| Product format | Modular tension-fabric backdrop |
|---|---|
| Graphic material | 260 g stretch warp-knitted fabric |
| Printing | Full-color heat-transfer printing |
| Frame | 32 mm round aluminum tube; 1.2 mm wall thickness |
| Frame finish | Industrial sandblasted oxidation treatment in matte silver |
| Feet | Gray-painted steel feet |
| Module specification | Custom sizes, shapes and combinations |
| Order type | Made to order; custom size and artwork |
| Purchase size option | 10ft; final panel dimensions and overall footprint are recorded on the approved order drawing |
From catalog configuration to a finished display

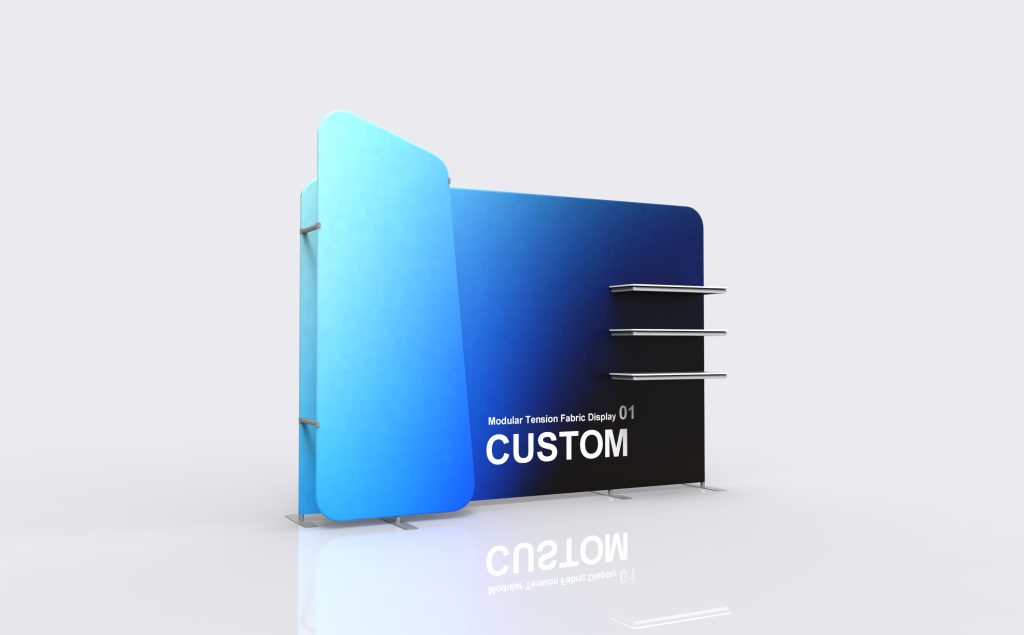

This catalog photograph shows the tall panel overlapping the printed backwall. Artwork and accessory selections vary by order.
The original reference retains its panel, support and side-view details. Custom dimensions are specified on the drawing approved for your order.

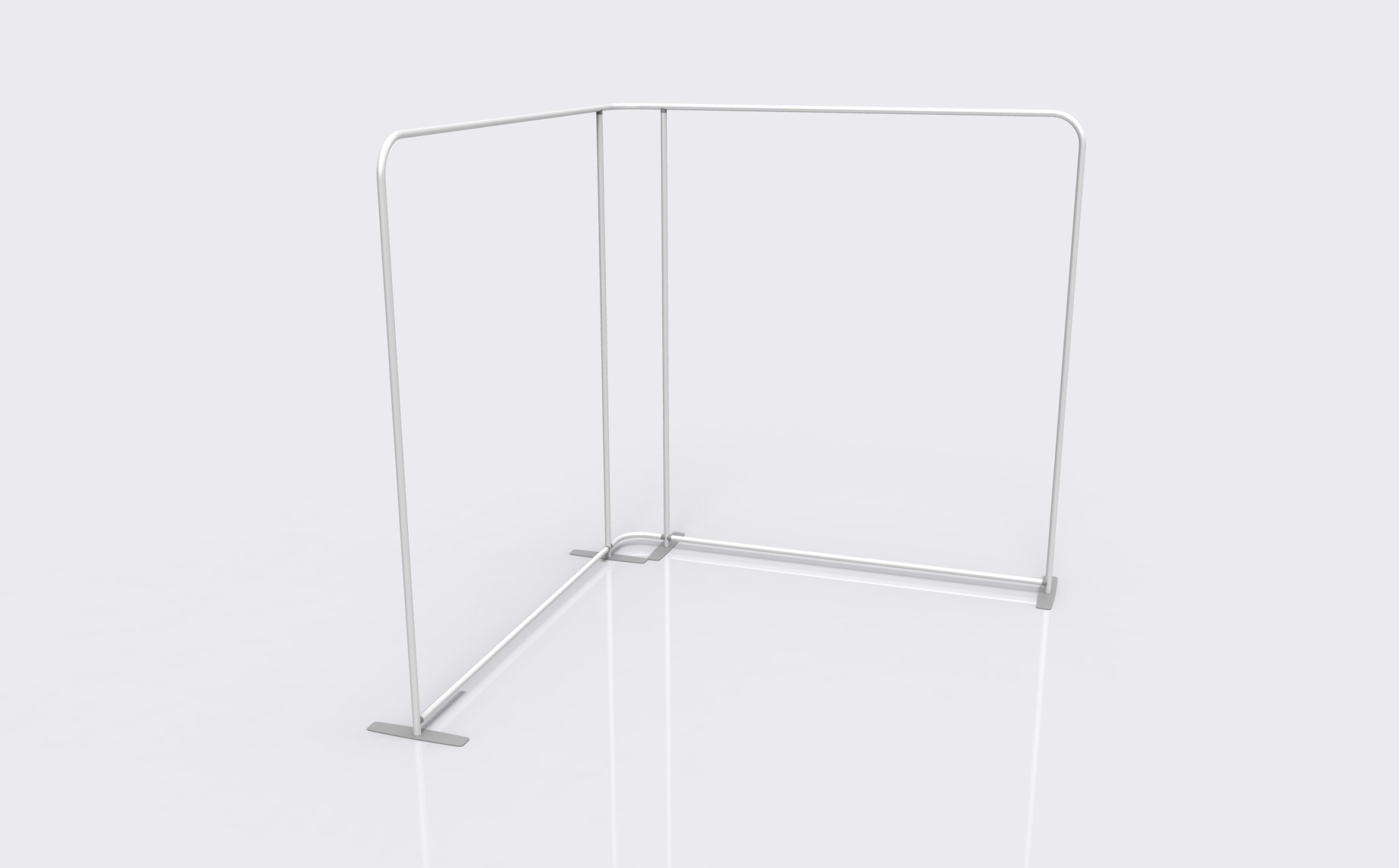

Built around the round-tube system
Marked tube sections
The tubular system uses elastic-cord connections and assembly markings to help identify the frame sections. Match the frame labels and graphics to the approved panel schedule during assembly.
Finished aluminum
Tube ends are chamfered for a smoother cut edge. The aluminum receives industrial sandblasted oxidation treatment and age hardening, with a matte-silver finish.
Printed stretch fabric
Your artwork is applied by full-color heat transfer. Each graphic follows its own frame template, including the taller overlapping face and the broad main wall.
Specify your set
Keep the frame arrangement, printed faces and accessories together in the quotation.
- Graphics & packing
- Full Graphic Set and Protective Packing are listed for this configuration. Select Single Sided or Double Sided printing for the required faces.
- Transport
- Oxford Fabric Carry Bag or Flight Case. Optional accessories and shipping are quoted separately.
- Purchase add-ons
- Spotlight, Repair Kit and Shelf.
- Separate requests
- Frame Only, Replacement Graphic Set, Additional Connector Kit, Shelf Kit and TV/Monitor Mount. For a screen or loaded shelf, provide dimensions, weight and the intended mounting position.
Before production
Confirm the Model 01 elevation, total outside dimensions, panel count and graphic coverage. Identify the complete frame-and-graphic set or the replacement components required, including connectors and mounting items. Add quantity, packing preference, delivery address and event date.
Milin supplies photos and video of the finished order for confirmation before dispatch. Video assistance is available if your team encounters an assembly difficulty.
Model 01 questions
Are the shelves in the picture included?
The Model 01 render and frame show a shelf area, while Shelf is a selectable add-on in the purchase area. List the shelves and mounting items you need in the quotation. Supply the product dimensions and loaded weight; no shelf load rating is stated for this reference configuration.
Can I order a different size or panel arrangement?
The catalog allows custom sizes, shapes and combinations for Model 01. Provide the required overall width and height, the taller panel position and your booth footprint. The order drawing should include steel-foot projection as well as the fabric faces.
Can I replace only one graphic panel?
For a single-panel request, identify whether you need the tall foreground graphic or a section of the broad rear wall. Send the original order reference and matching template. If the image continues between panels, review the new artwork beside the retained graphics before ordering the replacement.
What should I check before approving the artwork?
Review the wall and tall panel together, with shelf contents and any counter drawn in front. Check the overlap first: text hidden behind the tall panel cannot be recovered by enlarging the rear artwork. Then approve the separate templates and printed-side coverage.
How is the finished order checked before shipping?
Milin sends photos and video of the completed order for your confirmation before dispatch. Review the artwork, panel arrangement and selected accessories. For missing or damaged parts on arrival, send the order reference and photos so the team can arrange a remedy.
