Modular Fabric Pillar 03
Modular Fabric Pillar 03 is the second domed-top variation in the product catalog. It uses an aluminum-tube framework and project-specific dimensions. Select this version by its intended top outline and complete arrangement, rather than assuming it is the same frame as version 02 with different printing.
Specifications & configuration
| Product format | Domed modular fabric pillar display |
|---|---|
| Graphic material | 260 g stretch warp-knitted fabric |
| Printing | Full-color heat-transfer printing |

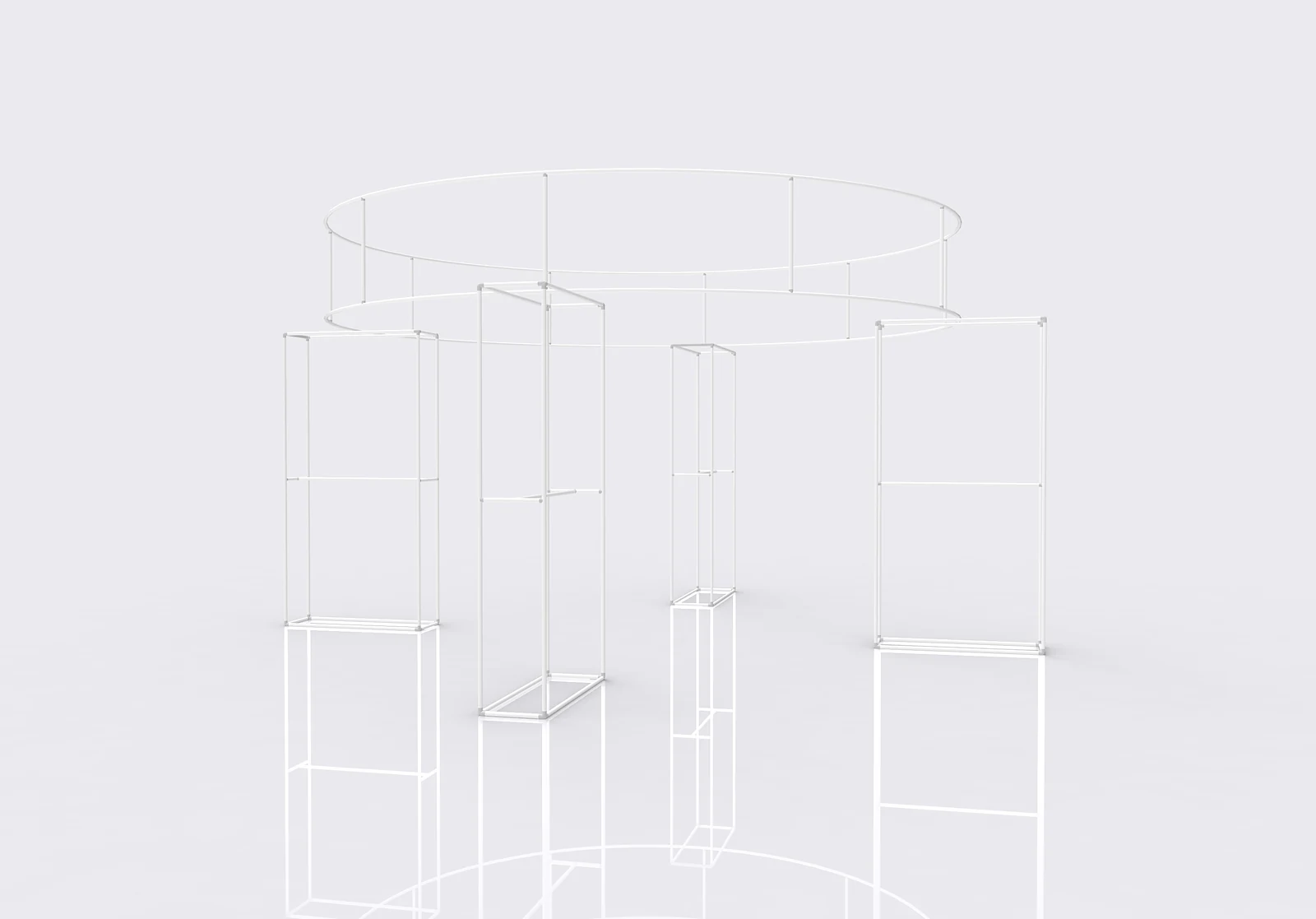

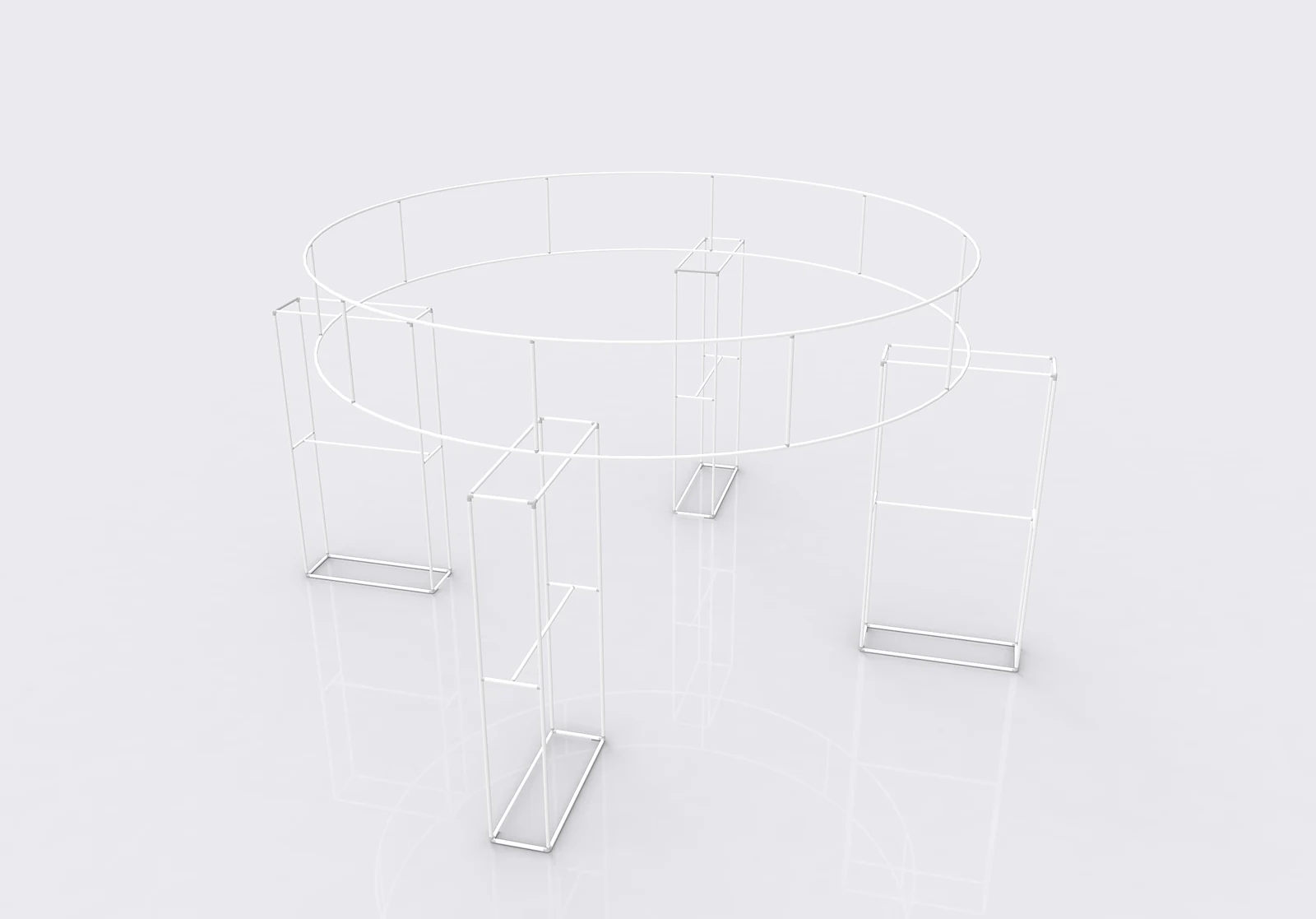

| Frame | 32 mm round aluminum tube; 1.2 mm wall thickness |
| Frame finish | Industrial sandblasted oxidation treatment in matte silver |
| Order type | Made to order; custom size and artwork |
| Top configuration | Domed-top version 03; dimensions customized to the site. |
Product details
Form & footprint
Check the full height and widest point of the shaped top against the available space.
Graphic placement
The top and body may face different viewing angles. Keep the main message on the surface visitors can read most clearly.
Suitable uses
It can provide a distinct vertical element in a custom exhibition or event display.
Order configuration
The catalog does not establish interchangeable parts between the domed variants. Confirm the frame set for version 03.
Artwork & print
Artwork preparation
Use a proof showing both the body and dome, with the seams and graphic orientation identified.
Included & optional
Included in this configuration
- Full-Cover Graphic
- Protective Packing
Optional accessories
- Frame Only
- Replacement Fabric Graphic
- LED Display Light Kit
- TV/Monitor Mount
Applications
Overhead branding
Give an exhibition stand a shaped overhead profile.
Display applications
Add a domed graphic feature to a coordinated fabric display.
Display applications
Create a vertical visual marker within a temporary event setting.
Planning & ordering
Order essentials
Reference version 03 and supply the available floor area and maximum height for the complete structure.
- Finished dimensions and access requirements
- Artwork file and print orientation
- Selected components and packing requirements
Quotation checklist
- Quantity and preferred configuration
- Installation location and available space
- Any equipment dimensions or fit requirements
- Delivery destination and required date
Questions & answers
Is version 03 interchangeable with version 02?
The product information does not establish interchangeability. Confirm the frame and graphic dimensions for the selected version.
How should I prepare custom artwork?
For a printed configuration, use the template for the confirmed model and dimensions. Check the visible faces, edges and fitting areas before approval; a graphic from a similarly named product is not proof of a matching fit.
Does the reference image define everything included?
No. Have the quotation identify the product configuration, selected accessories and packing items individually. Reference images can show equipment or surrounding items that are not included in the order.
How should I plan production and delivery?
After production, Milin sends photos and video of the completed order for confirmation before dispatch. Include your delivery address and event date when requesting a schedule: manufacturing and transport are separate stages. Video installation guidance is available if you need help assembling the display.
