PRODUCT DETAILS

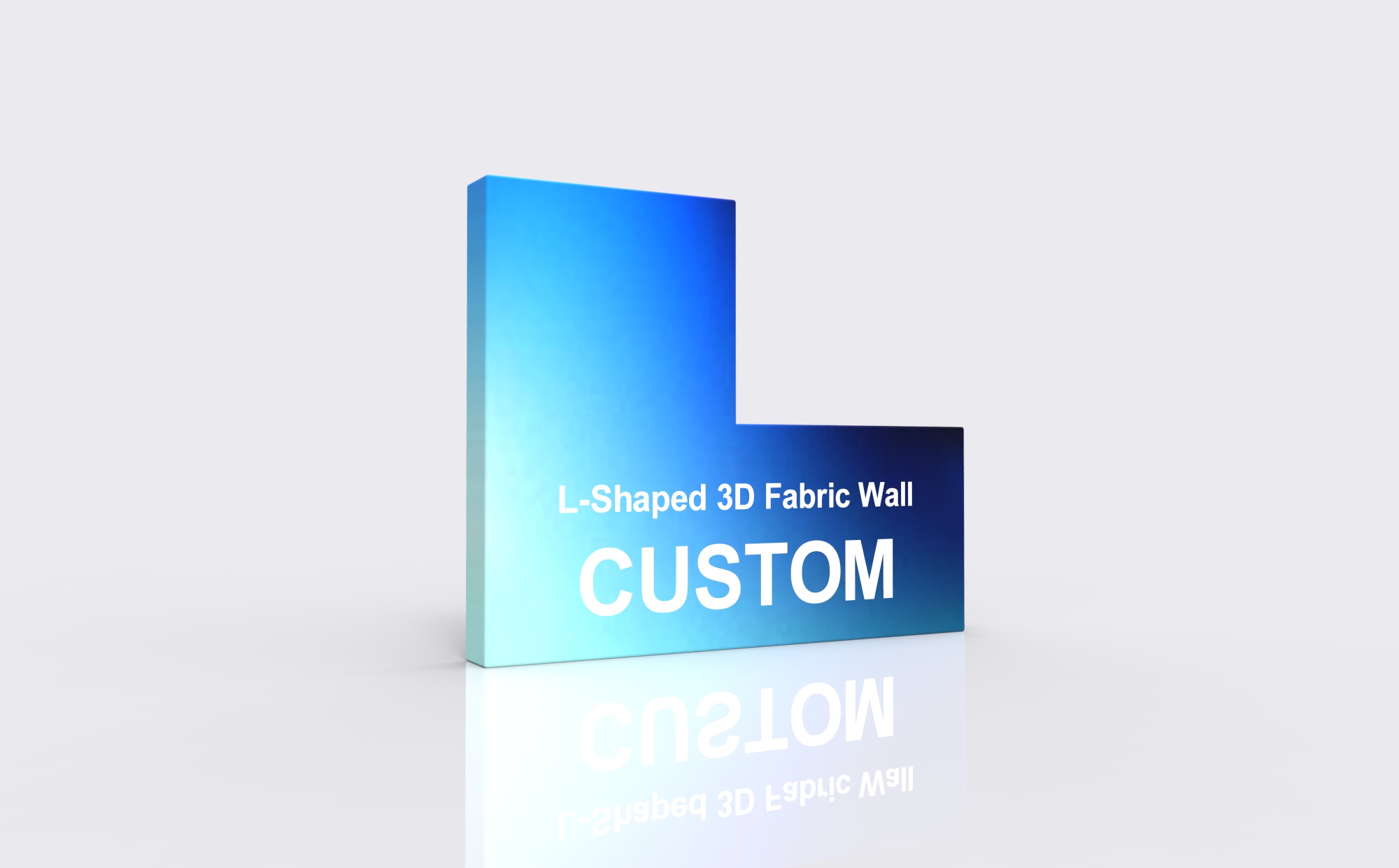

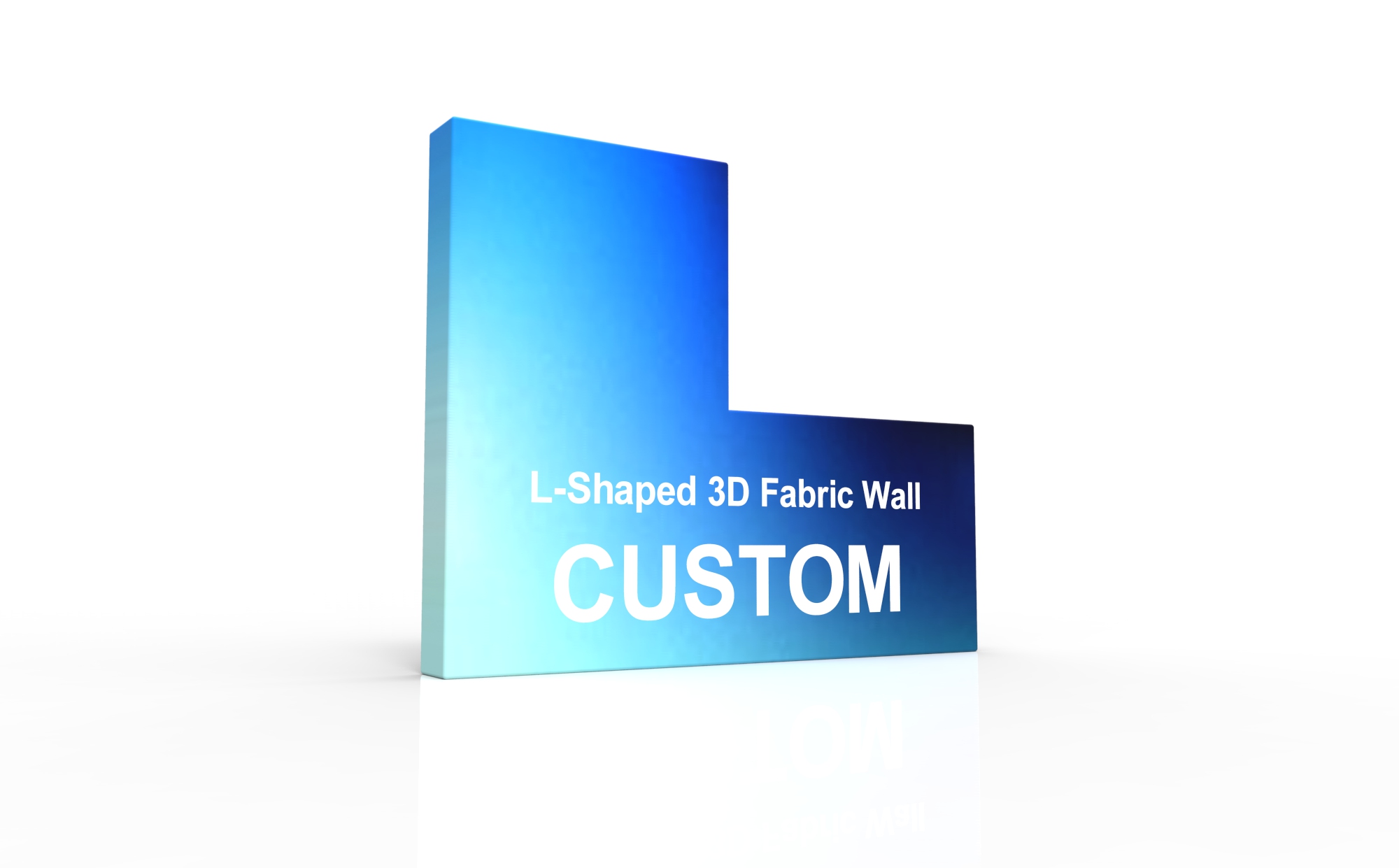

L-Shaped 3D Fabric Wall
The L-Shaped 3D Fabric Wall brings two connected faces into a corner arrangement, with depth at the edges. It is a custom-sized alternative to a single straight backwall for a booth that needs branding in two directions. The length of each return should follow the space available on site.
Specifications & configuration
| Product format | Tension-fabric backdrop |
|---|---|
| Graphic material | 260 g stretch warp-knitted fabric |
| Printing | Full-color heat-transfer printing |

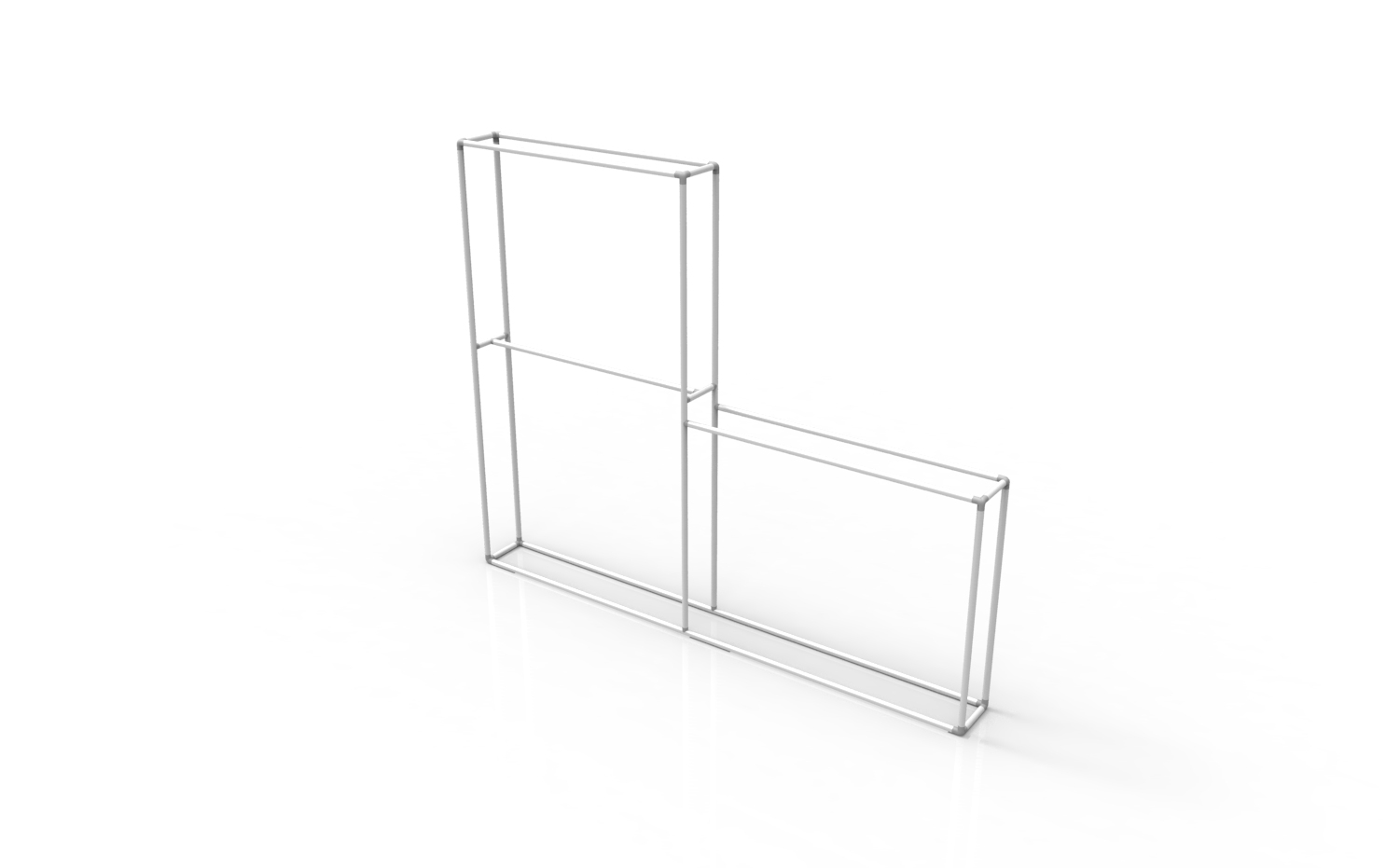

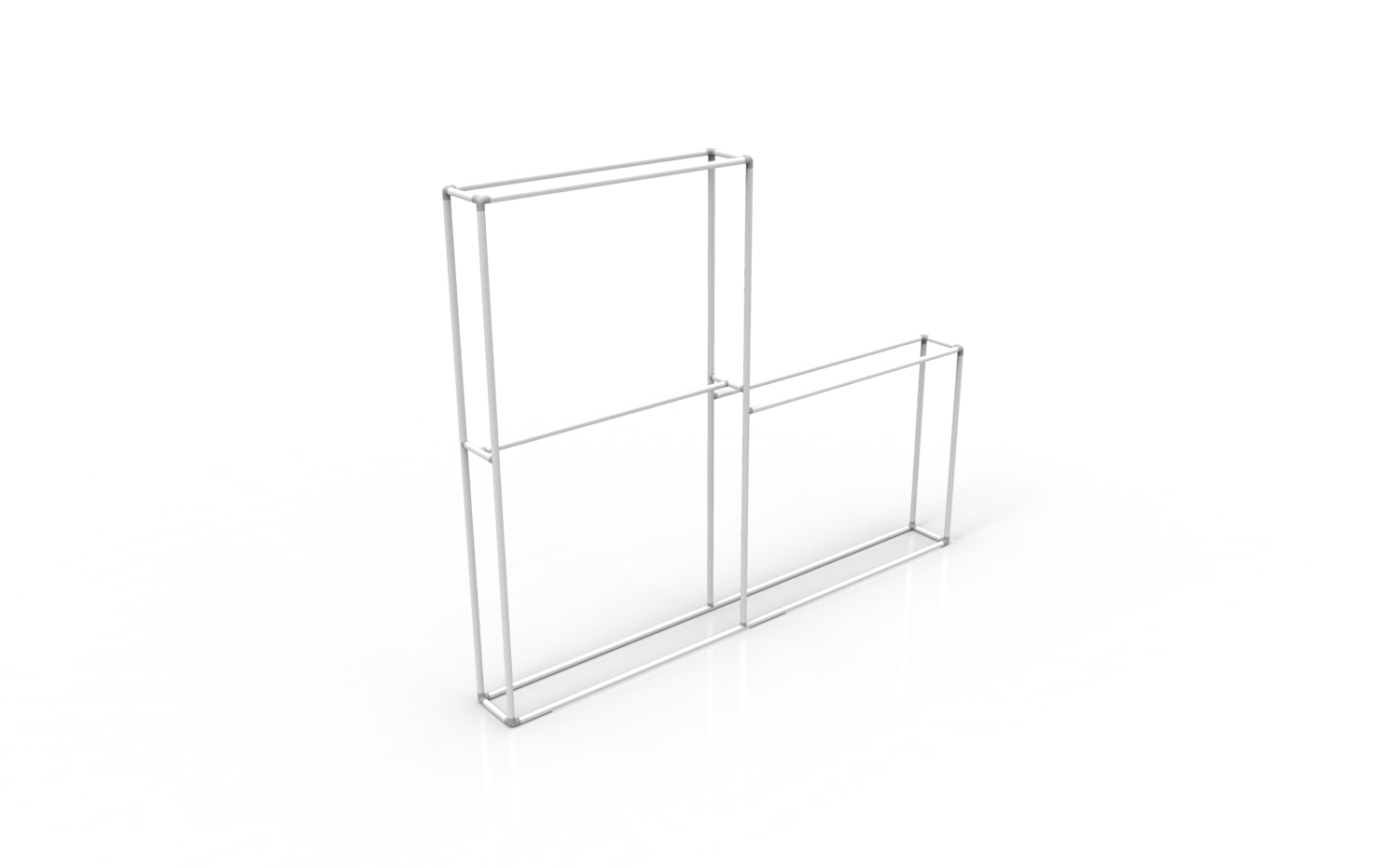

| Frame | 32 mm round aluminum tube; 1.2 mm wall thickness |
| Frame finish | Industrial sandblasted oxidation treatment in matte silver |
| Order type | Made to order; custom size and artwork |
| Size specification | Custom: specify both wall lengths, overall height and depth. |
Product details
Form & footprint
Treat the two legs of the L as separate dimensions. Extending one side changes both the enclosed area and the approach to the booth.
Graphic placement
Plan the corner as a transition between messages. Important logos should sit on a readable face rather than disappear into the turn.
Suitable uses
The layout suits a corner presentation or a branded enclosure with an open front and side approach.
Order configuration
This model is listed as custom-sized. Agree the two wall lengths, height and depth together instead of selecting by overall width alone.
Artwork & print
Artwork preparation
Use a plan view alongside the elevations to label the left and right faces. Show where continuous artwork crosses the corner.
Included & optional
Included in this configuration
- White Back
- Soft Bag
Optional accessories
- Frame Only
- Replacement Stretch-Fabric Graphic
- LED Display Lights (2 pack)
- Convertible Podium Case
- TV/Monitor Mount
Applications
Branded boundaries
Define two edges of an exhibition space while keeping the other approaches open.
Display applications
Create a corner backdrop for a product demonstration with branding behind and beside the presenter.
Retail displays
Give a temporary retail zone a more enclosed visual setting than a single flat panel.
Planning & ordering
Order essentials
Send a dimensioned floor plan, the preferred corner orientation and any furniture positions that affect access.
- Finished dimensions and access requirements
- Artwork file and print orientation
- Selected components and packing requirements
Quotation checklist
- Quantity and preferred configuration
- Installation location and available space
- Any equipment dimensions or fit requirements
- Delivery destination and required date
Questions & answers
Is there one standard size?
The catalog lists a custom frame size for this model. Both returns and the overall height need to be specified.
How should I prepare custom artwork?
For a printed configuration, use the template for the confirmed model and dimensions. Check the visible faces, edges and fitting areas before approval; a graphic from a similarly named product is not proof of a matching fit.
Does the reference image define everything included?
No. Have the quotation identify the product configuration, selected accessories and packing items individually. Reference images can show equipment or surrounding items that are not included in the order.
How should I plan production and delivery?
Production timing, dispatch arrangements and any assembly support should be confirmed for the selected configuration and destination. Share your delivery address and event date when requesting a quote.
