Inflatable Screen
A large-format fabric screen supported by an airtight inflatable frame. A 0.3 mm polyether TPU bladder retains the air, while a three-layer screen incorporates a light-blocking middle layer.

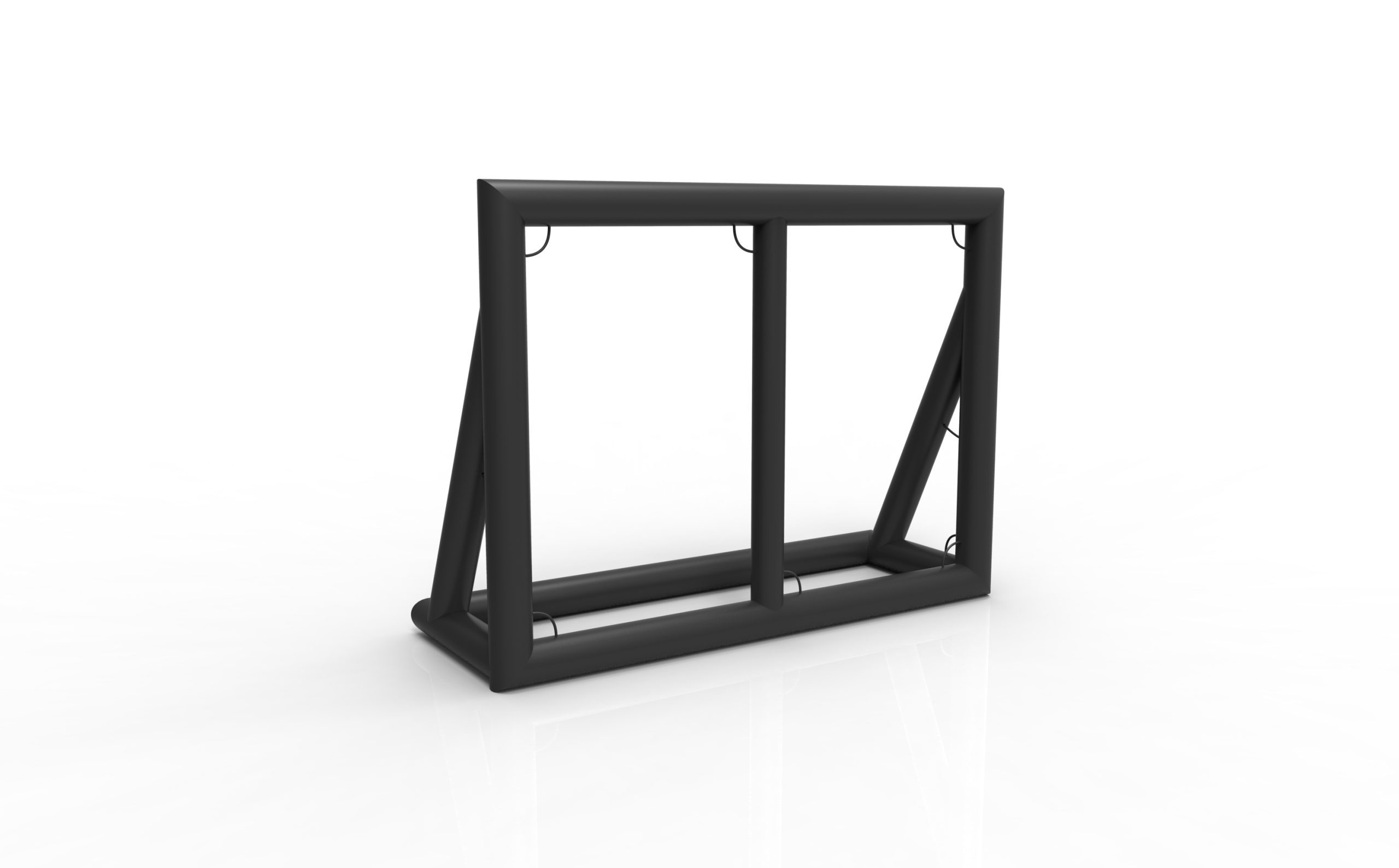

What is inside the frame?
The outer frame fabric, airtight bladder and screen surface perform different jobs. Specify them together with the supports and anchoring for the installation.
Industrial-yarn outer shell
The manual specifies reinforced industrial-yarn fabric, described as waterproof, flame-retardant and abrasion-resistant. For venue compliance, request the applicable material test report; no certification class is stated here.
Airtight TPU bladder
The 0.3 mm polyether TPU inner bladder uses an inflation valve and a pressure-relief valve. The relief valve releases air at its set pressure; follow the supplied operating pressure and inspection instructions.
Light-blocking screen
A middle blackout layer sits between two fabric layers. Keep the intended viewing surface separate from printed branding when preparing a projection configuration.
Screen specification
- Product type
- Made-to-order inflatable event screen
- Reference screen sizes
- W 500 × H 300 cm or W 600 × H 300 cm; custom sizes available.
- Size
- Custom; confirmed by drawing
- Inner bladder
- Polyether TPU, 0.3 mm thick.
- Inflation construction
- Sealed-air construction with an inflation valve and pressure-relief valve.
- Screen layers
- Three-layer fabric construction with a light-blocking middle layer.
- Air system
- Sealed-air frame: inflate through the inlet valve; use the equipment and pressure specified for the selected screen.
- Anchoring
- Confirmed for the intended surface and venue
- Catalog anchoring accessories
- Ground stakes and guy ropes
- Minimum order
- 1 set
The purchase area offers a 20ft selection. Confirm the finished assembly dimensions and usable screen opening on the order drawing; the catalog reference sizes above are not a verified projection-area measurement.
Fit the screen to the event
Viewing area
Start with the usable image width and height, audience position and expected light conditions. The inflatable border sits outside that viewing area. Share these dimensions with the projector supplier so the equipment is chosen for the screen surface and venue.
Installation footprint
Allow for the inflatable border, rear supports, guy ropes and clear access. Give the installer the complete footprint rather than only the front-screen width.
Surface and anchoring
State whether the screen will stand on soil, paving or an indoor floor. Outdoor placement requires the supplied operating limits and a site-specific anchoring arrangement.
Brand the display. Preserve the viewing area.

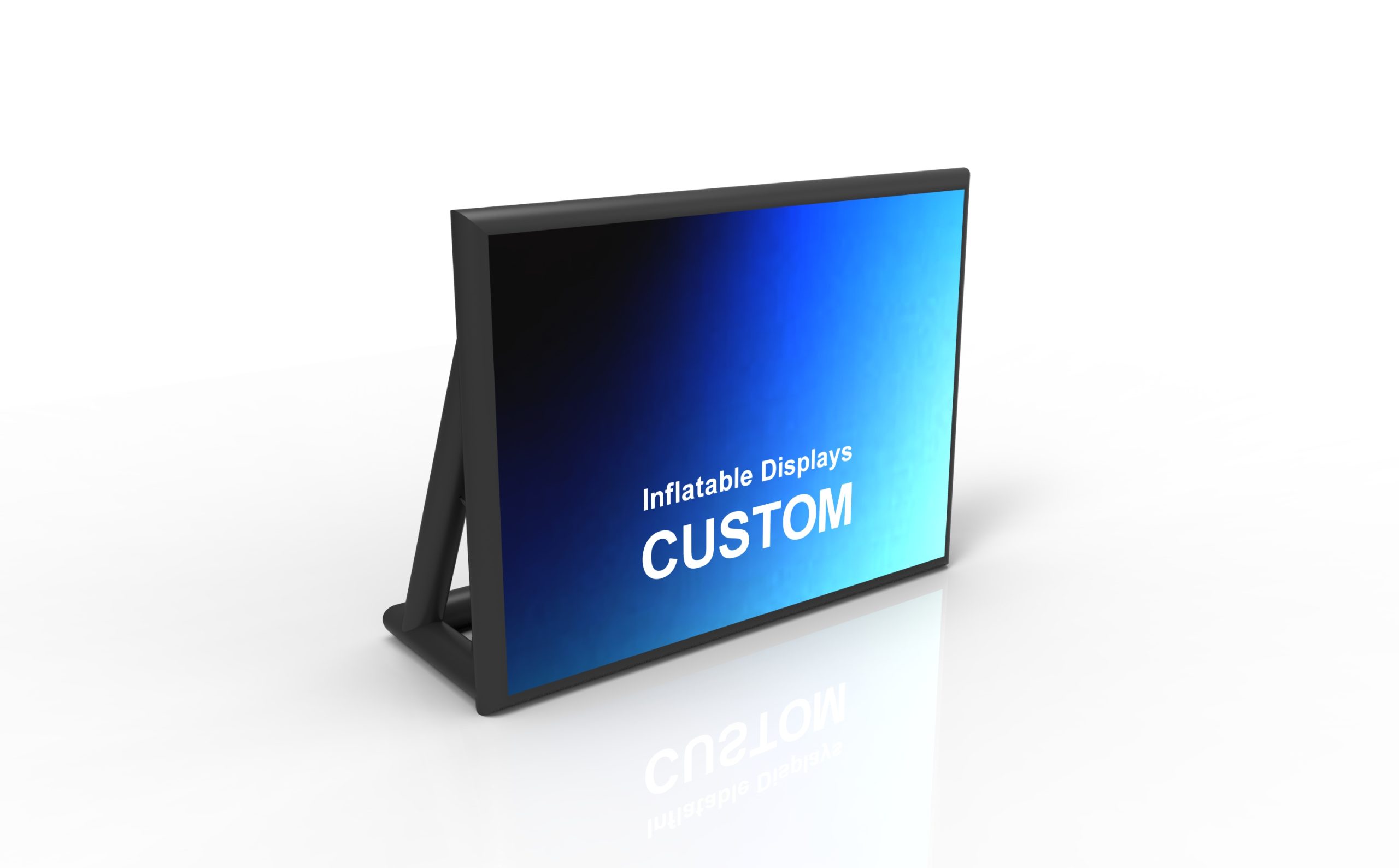

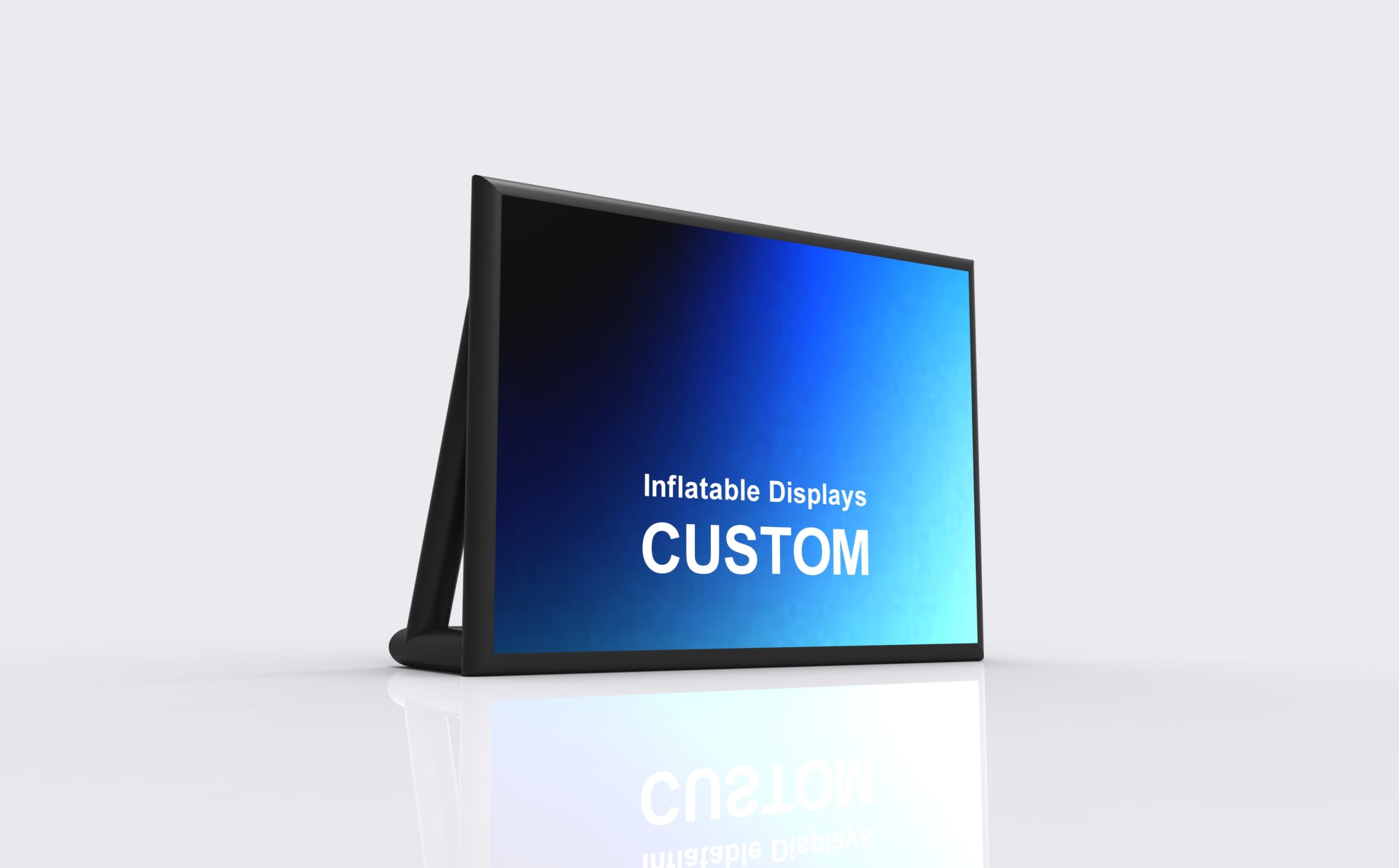

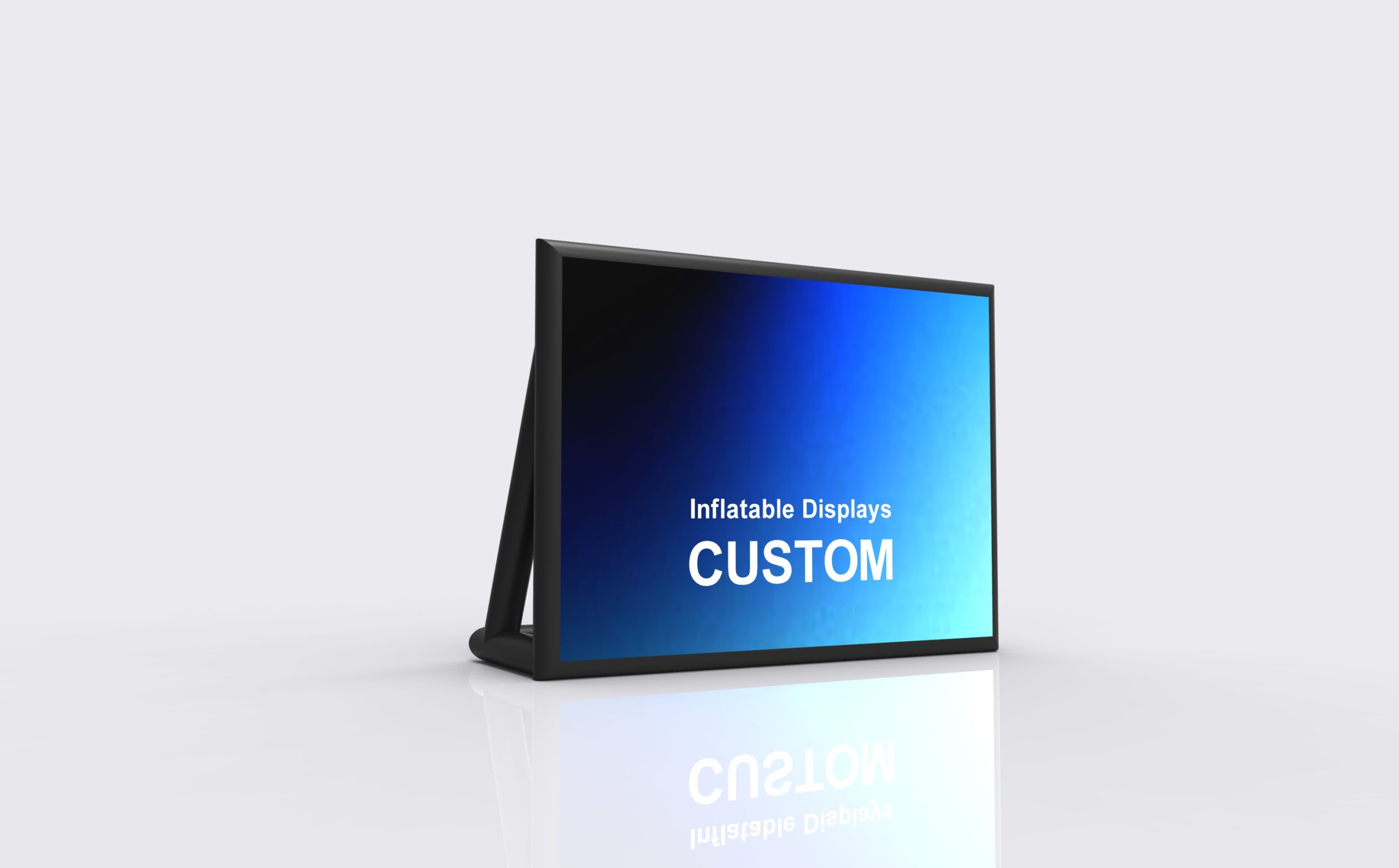

The product images show a printed demonstration graphic. A printed event display and a projection setup need different artwork planning: sponsor graphics must stay outside the area reserved for a projected image.
For projection, identify the surface that must stay suitable for the image. Prepare artwork only after the printable boundary, fabric attachment and allowances are approved; keep logos clear of curved edges and valves.
Specify the complete supply
Listed included items
- Custom-Printed Inflatable Body
- Protective Storage Bag
Transport choices in the purchase area: Oxford Fabric Carry Bag or Flight Case. Confirm the selected packing in the quotation.
Optional equipment
- Electric Blower — model-matched inflation equipment
- Anchoring Kit — the catalog lists ground stakes and guy ropes
- Repair Kit
The purchase area also lists Spotlight and Shelf add-ons. Confirm their suitability and mounting arrangement for this inflatable model before including them.
Send one brief for the screen and site
Include the required usable viewing area, overall size limits, printed or projection use, indoor/outdoor location, surface type and anchor space. Add the quantity, destination and event date.
Request a quotation identifying the screen assembly and fabric, matched inflation equipment and instructions, anchors, repair items, storage bag and packed dimensions. Optional accessories and shipping are quoted separately.
Before you order
Does the air equipment run continuously?
This is a sealed-air design: inflate the frame through its inlet valve and close it for use. It is not specified as a continuously blown structure. Use the model-matched pump and operating pressure, and inspect the frame as instructed.
Can I project through the screen from behind?
The specified screen has a light-blocking middle layer. Do not plan rear projection through that material. Confirm the supplied viewing surface, front-projection suitability and image size with Milin before choosing the projector.
Are the listed sizes the visible projection area?
The catalog gives W 500 × H 300 cm and W 600 × H 300 cm, but does not identify these as clear projection areas. Use a drawing that separates the screen opening, inflatable border and support footprint. The 20ft selector label alone is not enough to choose a projector or calculate the image size.
Does the screen include a projector?
A projector is not listed among the included items. Specify whether you need a printed display or a projection screen, then identify the required viewing surface, inflatable body, inflation equipment, anchors and packing in the quotation. Choose the projector separately for the agreed image area and lighting conditions.
What wind speed is the screen rated for?
No model-specific wind rating is established in the supplied product information. Obtain the supplied assembly’s operating limits and anchoring instructions before outdoor use. A pressure-relief valve does not provide a wind rating.
What do you need for an anchoring proposal?
Send the ground or floor type, site location, available support and anchor area, and venue restrictions. The catalog lists ground stakes and guy ropes; a hard floor or a venue that prohibits stakes needs its own approved arrangement.
