Full Open Square Arch 02

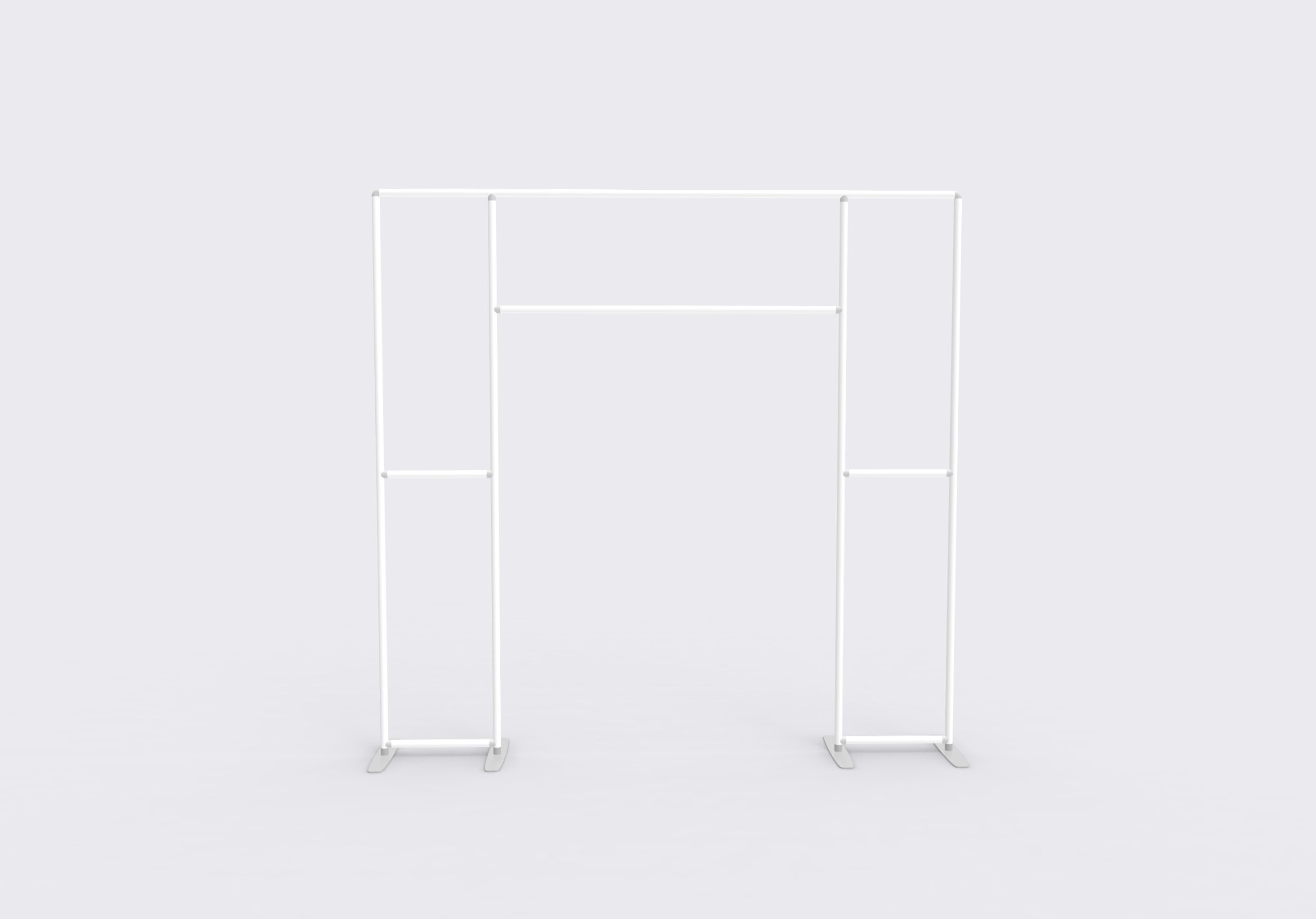

Full Open Square Arch 02 is a separate square-arch design with two catalog size references and custom sizing available. The listed openings are 90 cm and 100 cm within overall widths of 240 cm and 300 cm respectively. Select the version 02 outline as well as the size when planning the entrance.
Specifications & configuration
| Product format | Fabric entrance structure |
|---|---|
| Graphic material | 260 g stretch warp-knitted fabric |
| Printing | Full-color heat-transfer printing |

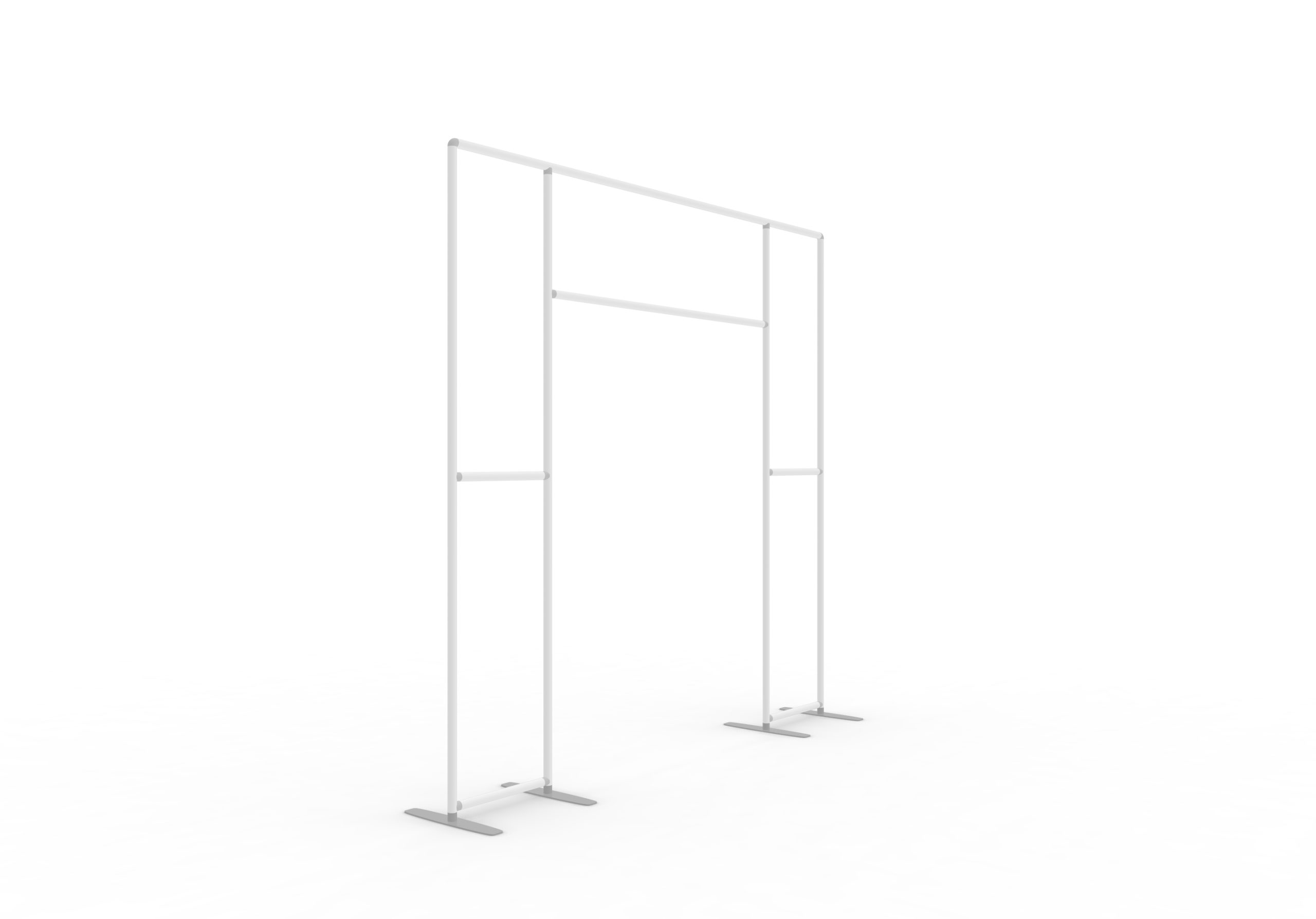

| Frame | 32 mm round aluminum tube; 1.2 mm wall thickness |
| Frame finish | Industrial sandblasted oxidation treatment in matte silver |
| Order type | Made to order; custom size and artwork |
| Reference size 1 | W 240 × H 230 cm; doorway width 90 cm. |
| Reference size 2 | W 300 × H 240 cm; doorway width 100 cm. |
| Print coverage | Single- or double-face graphic; custom frame sizes available. |
Product details
Form & footprint
Reserve a clear route through the opening and account for the supporting steel feet on either side.
Graphic placement

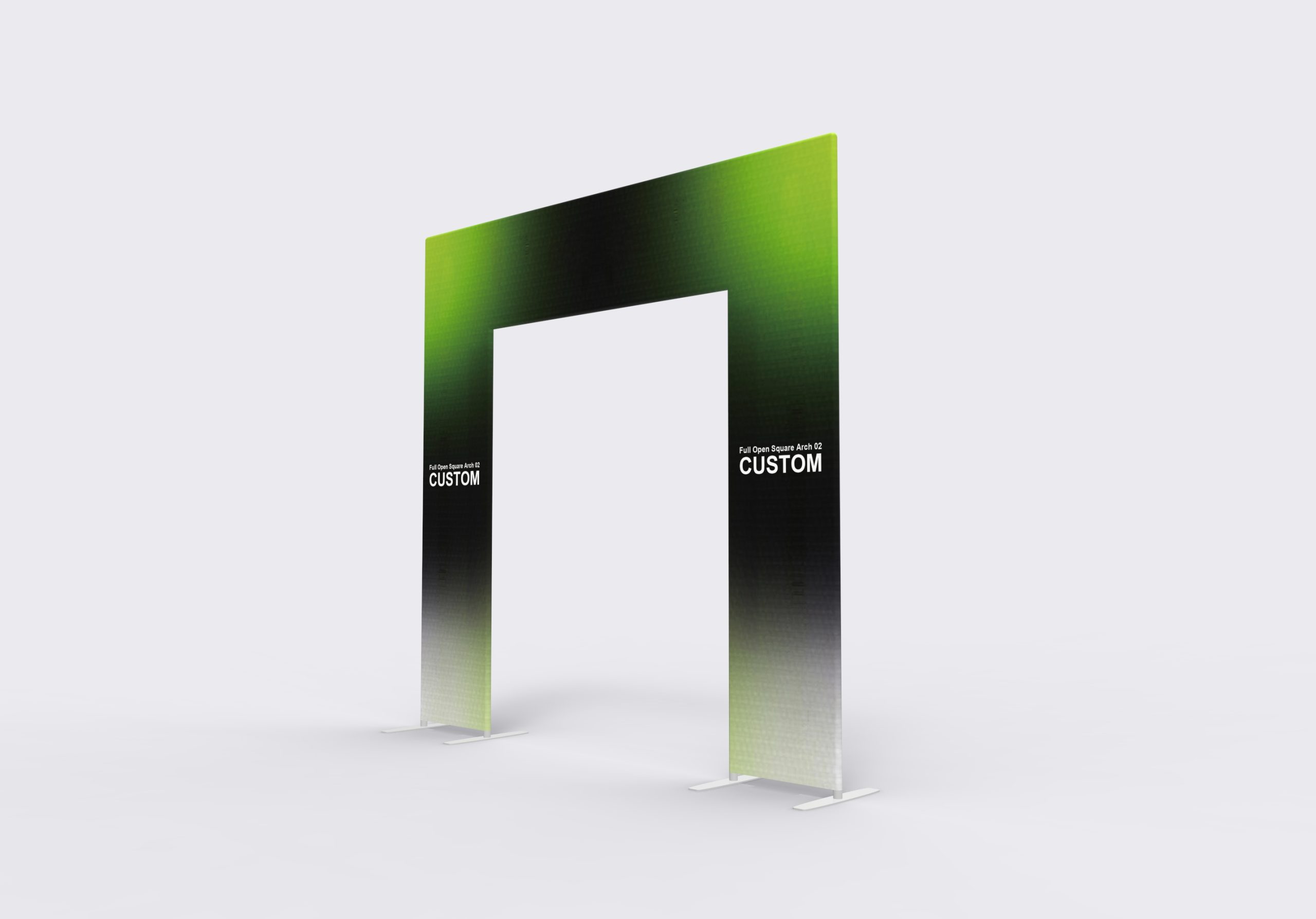

The straight header provides the main reading area. Review the upright graphics from the visitor's approach.
Suitable uses
This form can create a branded threshold without replacing the doorway with a solid wall.
Order configuration
Single- and double-face graphics are listed. Reverse printing is useful if the arch will also be seen on exit.
Artwork & print
Artwork preparation
Check the proof against version 02's outline, even if another arch shares the same overall size label.
Included & optional
Included in this configuration
- White Back
- Soft Bag
Optional accessories
- Frame Only
- Replacement Fabric Graphic
- Shelf Kit
- LED Display Lights (2 pack)
- TV/Monitor Mount
Applications
Entrances & routes
Create a branded threshold at a trade show.
Display applications
Frame the approach to an event activity.
Display applications
Carry a message on both arrival and departure when two-face printing is selected.
Planning & ordering
Order essentials
Identify version 02 and state the necessary opening width, height limit and graphic coverage.
- Finished dimensions and access requirements
- Artwork file and print orientation
- Selected components and packing requirements
Quotation checklist
- Quantity and preferred configuration
- Installation location and available space
- Any equipment dimensions or fit requirements
- Delivery destination and required date
Questions & answers
Is version 02 the same as version 01?
Both entries list similar size options, but they are separate model references. Confirm the selected outline rather than assuming identical parts.
How should I prepare custom artwork?
For a printed configuration, use the template for the confirmed model and dimensions. Check the visible faces, edges and fitting areas before approval; a graphic from a similarly named product is not proof of a matching fit.
Does the reference image define everything included?
No. Have the quotation identify the product configuration, selected accessories and packing items individually. Reference images can show equipment or surrounding items that are not included in the order.
How should I plan production and delivery?
After production, Milin sends photos and video of the completed order for confirmation before dispatch. Include your delivery address and event date when requesting a schedule: manufacturing and transport are separate stages. Video installation guidance is available if you need help assembling the display.
