PRODUCT DETAILS
2D Hollow Tension Fabric Arch

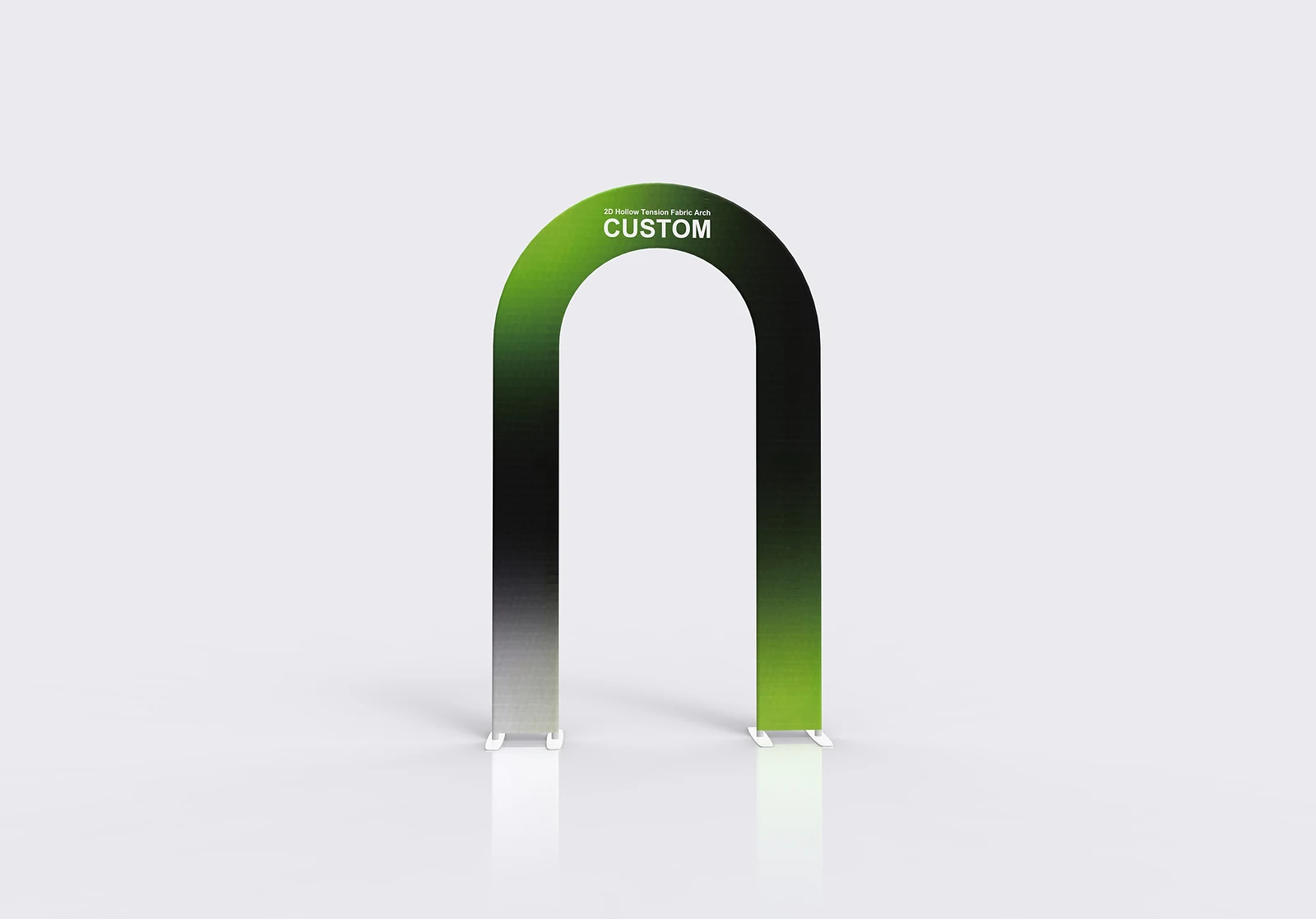

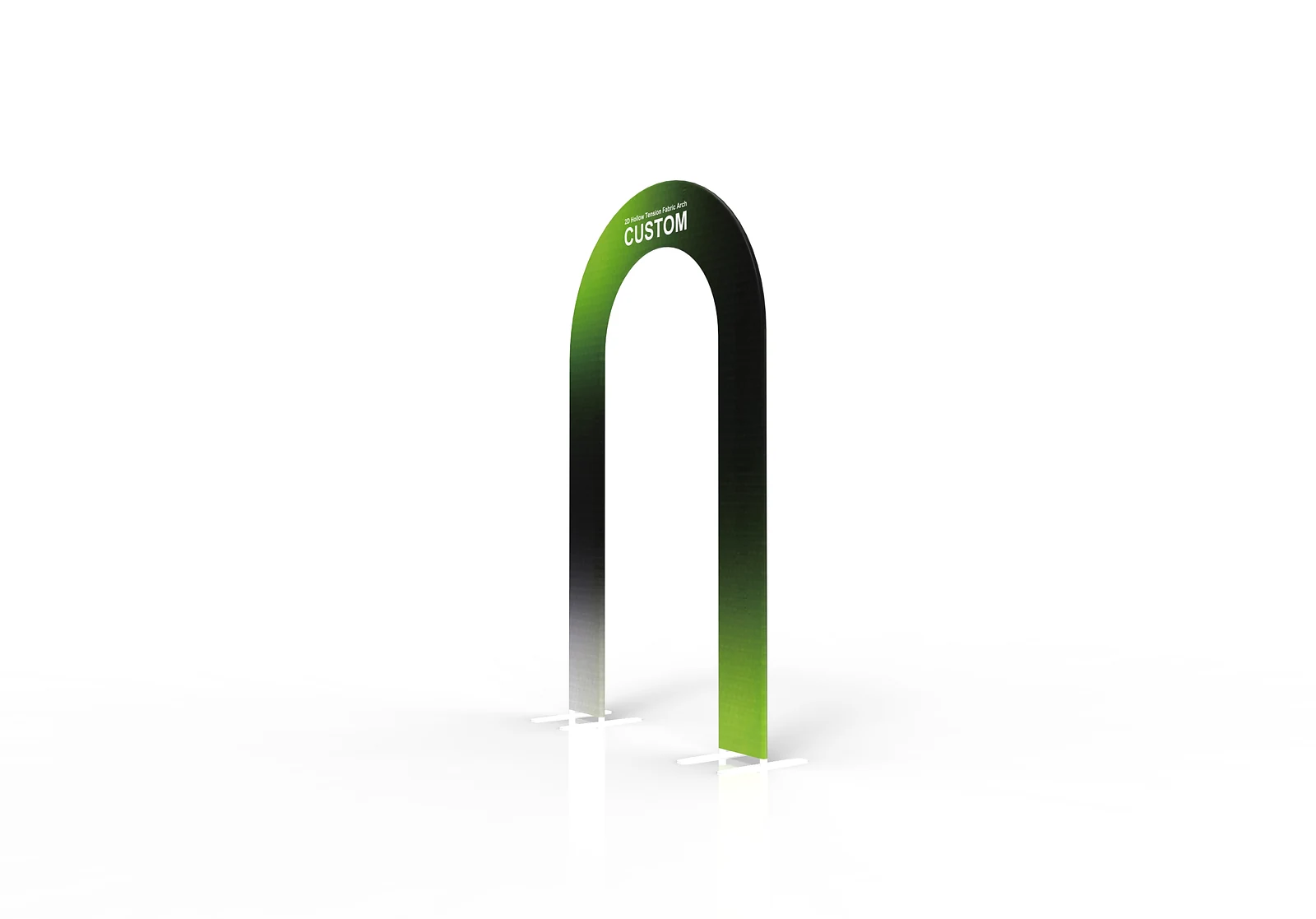

The 2D Hollow Tension Fabric Arch frames an entrance without filling it with a solid backdrop. The catalog version measures 180 cm wide by 240 cm high, with a 100 cm doorway. A printed stretch-fabric cover follows the opening, and gray-painted steel feet support the frame.
Specifications & configuration
| Product format | Fabric entrance structure |
|---|---|
| Graphic material | 260 g stretch warp-knitted fabric |
| Printing | Full-color heat-transfer printing |
| Frame | 32 mm round aluminum tube; 1.2 mm wall thickness |
| Frame finish | Industrial sandblasted oxidation treatment in matte silver |
| Order type | Made to order; custom size and artwork |
| Reference dimensions | W 180 × H 240 cm; doorway width 100 cm. Custom frame sizes available. |
| Print coverage | Single- or double-face graphic. |
| Support feet | Gray-painted steel foot plates. |
Product details
Form & footprint
Measure the doorway separately from the overall width. The printed frame occupies space on both sides of the opening.
Graphic placement
Single- and double-face graphics are listed. Choose the coverage according to whether visitors will see the arch from one direction or both.
Suitable uses
It works as an entrance marker or a visual transition between exhibition zones, with a clear opening through the middle.
Order configuration
Custom frame sizes are available. Discuss the clear passage and foot positions before choosing a larger overall outline.
Artwork & print
Artwork preparation
Keep the event name in the upper printed area and use the uprights for supporting branding. Do not stretch a flat banner design across the doorway.
Included & optional
Included in this configuration
- White Back
- Soft Bag
Optional accessories
- Frame Only
- Replacement Fabric Graphic
- Shelf Kit
- LED Display Lights (2 pack)
- TV/Monitor Mount
Applications
Entrances & routes
Mark the approach to an exhibition stand without placing a solid wall across the entrance.
Entrances & routes
Separate registration from the event floor while retaining a visible route through.
Entrances & routes
Frame an activation entrance with graphics that can be read on arrival and departure.
Planning & ordering
Order essentials
Provide the required clear opening, overall height and the direction of approach. State whether the reverse face needs printing.
- Finished dimensions and access requirements
- Artwork file and print orientation
- Selected components and packing requirements
Quotation checklist
- Quantity and preferred configuration
- Installation location and available space
- Any equipment dimensions or fit requirements
- Delivery destination and required date
Questions & answers
How wide is the opening?
The catalog example has a 100 cm doorway within a 180 cm overall width. A custom opening should be specified separately.
How should I prepare custom artwork?
For a printed configuration, use the template for the confirmed model and dimensions. Check the visible faces, edges and fitting areas before approval; a graphic from a similarly named product is not proof of a matching fit.
Does the reference image define everything included?
No. Have the quotation identify the product configuration, selected accessories and packing items individually. Reference images can show equipment or surrounding items that are not included in the order.
How should I plan production and delivery?
Production timing, dispatch arrangements and any assembly support should be confirmed for the selected configuration and destination. Share your delivery address and event date when requesting a quote.
